High-Precision Heavy-Duty CNC Press Brake for Advanced Sheet Metal Fabrication

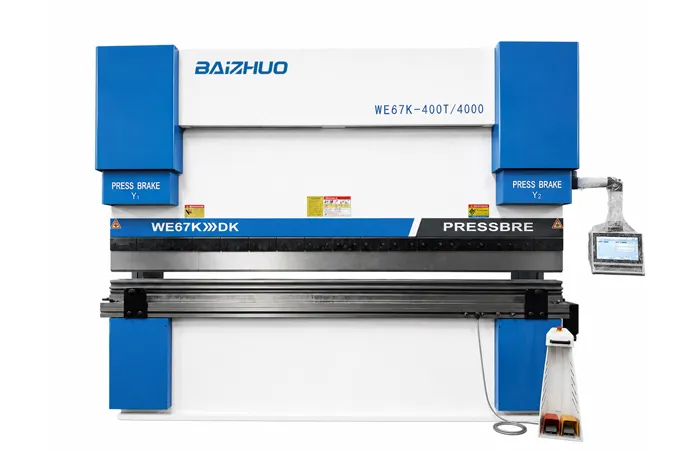

The 400T/4000mm 4+1 Axis CNC Electro-Hydraulic Press Brake with Delem DA53T controller is a high-performance bending solution designed for heavy-duty sheet metal fabrication. Equipped with advanced electro-hydraulic synchronization technology and a reliable CNC control system, this machine delivers outstanding bending accuracy, stable performance, and high production efficiency for industrial metal processing applications.
Manufactured by Nantong Baizhuo CNC Machine Co., Ltd., this CNC hydraulic press brake is widely used in stainless steel fabrication, electrical cabinet manufacturing, construction machinery, elevator production, and heavy industrial sheet metal processing.
Advanced Delem DA53T CNC Control System
The Delem DA53T controller provides:
User-friendly touchscreen interface
Automatic bending angle calculation
Multi-step bending programming
Tool and material management
High-precision axis control
The intelligent CNC system significantly improves bending efficiency and reduces manual setup time.
This CNC press brake adopts advanced 4+1 axis control technology:
Y1, Y2 axes for ram synchronization
X axis for backgauge positioning
R axis for backgauge height adjustment
V axis for automatic crowning compensation
The electro-hydraulic synchronized system ensures excellent bending precision and stable repeatability during long-term operation.
The machine frame is welded with high-quality steel plates and processed by heat treatment to eliminate internal stress.
Advantages include:
Excellent structural rigidity
Reduced deformation during heavy bending
Stable long-term accuracy
Extended machine lifespan
The 400T bending force makes it ideal for thick plate bending applications.
The high-precision CNC backgauge system features:
Ball screw transmission
Linear guide rails
Servo motor control
Fast positioning speed
High repeat positioning accuracy
This ensures consistent bending dimensions for complex workpieces.
The V-axis crowning system automatically compensates for table deformation during bending, ensuring:
Uniform bending angle
Improved precision for long workpieces
Better bending consistency
Reduced manual adjustment time
Especially suitable for 4000mm long sheet metal bending.

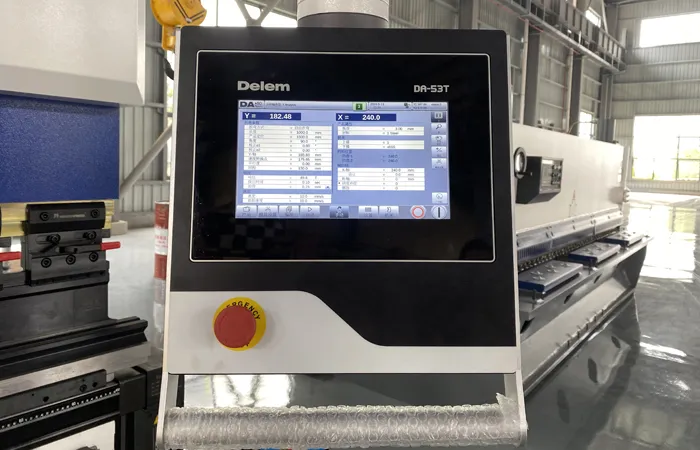

Delem DA-53T is one of the most popular CNC systems in the press brake industry, featuring:
10.1” high-resolution color TFT display
Touchscreen operation for easy programming
Automatic bending sequence calculation
Angle correction and compensation
Multi-step programming capability
USB interface for data backup
The machine is equipped with a robust front support arm system, designed for enhanced productivity and operator convenience:
Adjustable height and position
Linear guide movement for smooth sliding
High load-bearing capacity
Anti-slip surface design (as shown in image)
Ideal for large sheet metal support
Main Servo Motor
1.High-precision control system ensures excellent positioning accuracy.
2.High efficiency, low noise operation, and reduced energy consumption。
3. Wide speed adjustment range to meet various processing requirements.
4. Stable operation and high reliability, reducing equipment failures and maintenance costs.
CNC Punching Machine & Molds
1. Standard CNC V-type dies with various slot sizes and shapes for easy replacement, suitable for bending conventional sheet metal with high cost-effectiveness.
2. CNC V-type die workbench for convenient installation of sectional dies.
Scale from Italy GIVI
The slider position signal is fed back to the controller via the grating ruler, and the CNC controller adjusts the fuel supply of the oil tank.
By changing the opening degree of the synchronous valve, the sliders (Y1, Y2) are controlled to run at the same frequency to maintain the parallel state of the workbench.
High-Efficiency Crowning System for CNC Press Brake
Eliminate bending deflection with our motorized mechanical crowning system. Engineered for precision, it ensures consistent angles across the full bed length, enhancing accuracy and reducing waste in high-tonnage sheet metal fabrication.
High-Performance Electrical Control Cabinet for CNC Machinery
Our integrated control cabinets feature world-class components like Inovance drives and Schneider electrics. Designed for stability and safety, they ensure precision synchronization and reliable operation for industrial press brakes and high-speed CNC systems.
Backgauge
Close-up of BAiZHUO X+R axis backgauge with precision ball screw and helical gear system.
Quick Clamping System
High-Efficiency Quick Clamping System for CNC Press Brakes. Featuring a heavy-duty design for rapid mold changes, ensuring precise alignment, enhanced safety, and reduced downtime in sheet metal fabrication and industrial manufacturing.
