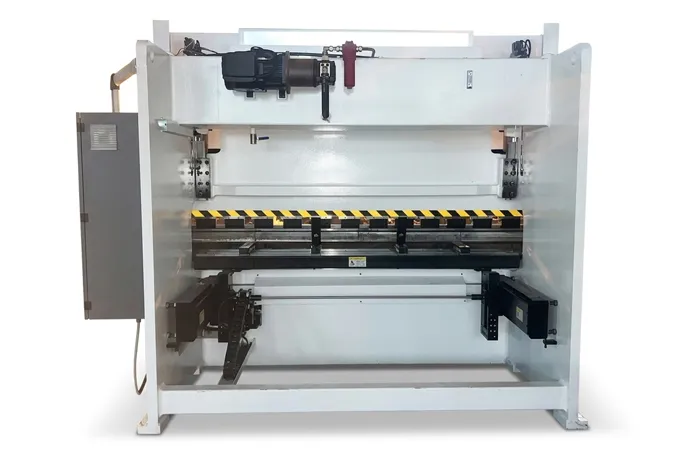

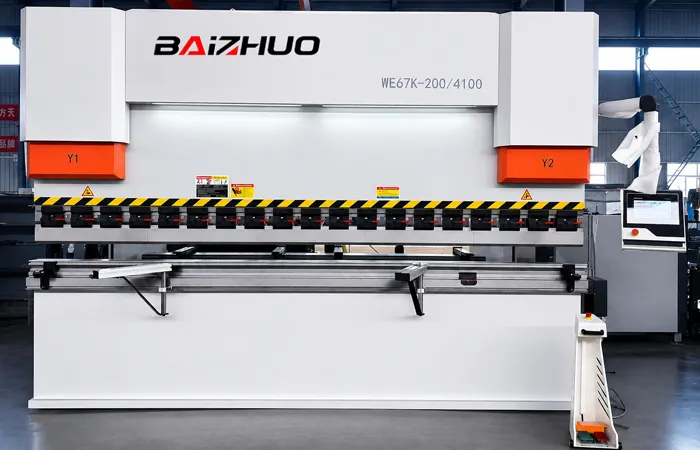

The WE67K 200T/4100mm CNC Hydraulic Press Brake is a high-precision sheet metal bending machine designed for demanding fabrication applications. Equipped with the renowned Delem DA53T CNC controller and electro-hydraulic servo synchronization technology, this machine delivers outstanding bending accuracy, repeatability, and production efficiency.
With a bending force of 200 tons and a working length of 4100mm, it is ideal for processing carbon steel, stainless steel, aluminum, and other metal sheets used in electrical cabinets, steel structures, elevators, HVAC systems, automotive components, and industrial manufacturing.
| Specifications and Models | Nominal pressure（kN） | Workbench length（mm） | Distance between columns（mm） | Throat depth（mm） | Slider stroke（mm） | Main motor power（kW） |
| WC67Y-40/2500 | 400 | 2500 | 2000 | 200 | 100 | 4 |
| WC67Y-63/2500 | 630 | 2500 | 2000 | 250 | 110 | 5.5 |
| WC67Y-63/3200 | 630 | 3200 | 2500 | 250 | 110 | 5.5 |
| WC67Y-80/2500 | 800 | 2500 | 2500 | 250 | 110 | 5.5 |
| WC67Y-80/3200 | 800 | 3200 | 2500 | 250 | 110 | 5.5 |
| WC67Y-80/4000 | 800 | 4000 | 3000 | 250 | 110 | 5.5 |
| WC67Y-100/2500 | 1000 | 2500 | 2000 | 250 | 110 | 7.5 |
| WC67Y-100/3200 | 1000 | 3200 | 2500 | 320 | 110 | 7.5 |
| WC67Y-100/4000 | 1000 | 4000 | 3000 | 320 | 110 | 7.5 |
| WC67Y-100/5000 | 1000 | 5000 | 4000 | 320 | 110 | 7.5 |
| WC67Y-125/2500 | 1250 | 2500 | 2000 | 320 | 110 | 7.5 |
| WC67Y-125/3200 | 1250 | 3200 | 2500 | 320 | 110 | 7.5 |
| WC67Y-125/4000 | 1250 | 4000 | 3000 | 320 | 110 | 7.5 |
| WC67Y-125/5000 | 1250 | 5000 | 4000 | 320 | 110 | 7.5 |
| WC67Y-160/3200 | 1600 | 3200 | 2500 | 320 | 190 | 11 |
| WC67Y-160/4000 | 1600 | 4000 | 3000 | 320 | 190 | 11 |
| WC67Y-160/5000 | 1600 | 5000 | 4000 | 320 | 190 | 11 |
| WC67Y-160/6000 | 1600 | 6000 | 4800 | 320 | 190 | 11 |
| WC67Y-200/3200 | 2000 | 3200 | 2500 | 320 | 190 | 11 |
| WC67Y-200/4000 | 2000 | 4000 | 3000 | 320 | 190 | 11 |
| WC67Y-200/5000 | 2000 | 5000 | 4000 | 320 | 190 | 15 |
| WC67Y-200/6000 | 2000 | 6000 | 4800 | 320 | 190 | 15 |
| WC67Y-250/3200 | 2500 | 3200 | 2500 | 320 | 240 | 15 |
| WC67Y-250/4000 | 2500 | 4000 | 3000 | 400 | 240 | 15 |
| WC67Y-250/5000 | 2500 | 5000 | 4000 | 400 | 240 | 15 |
| WC67Y-300/4000 | 3000 | 4000 | 3200 | 400 | 240 | 15 |
| WC67Y-300/5000 | 3000 | 5000 | 4000 | 400 | 240 | 22 |
| WC67Y-300/6000 | 3000 | 6000 | 4800 | 400 | 240 | 22 |
| WC67Y-400/4000 | 4000 | 4000 | 4000 | 350 | 240 | 22 |
| WC67Y-400/5000 | 4000 | 5000 | 4000 | 400 | 240 | 22 |
| WC67Y-400/6000 | 4000 | 6000 | 4800 | 400 | 240 | 30 |
| WC67Y-500/6000 | 5000 | 6000 | 4800 | 400 | 300 | 37 |
| WC67Y-500/12000 | 5000 | 12000 | multi-column | 400 | 300 | 37 |
| WC67Y-600/7000 | 6000 | 7000 | 5600 | 400 | 300 | 45 |
| WC67Y-700/7000 | 7000 | 7000 | 5600 | 400 | 300 | 45 |
| WC67Y-800/6000 | 8000 | 6000 | 5600 | 500 | 400 | 55 |
| WC67Y-1000/6000 | 10000 | 6000 | 6000 | 600 | 500 | 75 |
The WE67K 200T/4100mm CNC Press Brake is widely used in:
Sheet Metal Fabrication
Electrical Cabinet Manufacturing
Steel Structure Processing
Elevator Production
HVAC Duct Fabrication
Agricultural Machinery Manufacturing
Automotive Parts Production
Construction Equipment Manufacturing
As a professional CNC sheet metal machinery manufacturer, BAIZHUO CNC provides reliable press brake solutions for customers worldwide. Our machines combine advanced CNC technology, premium international components, and strict quality control to ensure excellent performance and long service life.
High bending accuracy and repeatability
Easy-to-use Delem DA53T touchscreen interface
Lower operating and maintenance costs
Stable performance for continuous production
CE-compliant safety standards
Global technical support and after-sales service

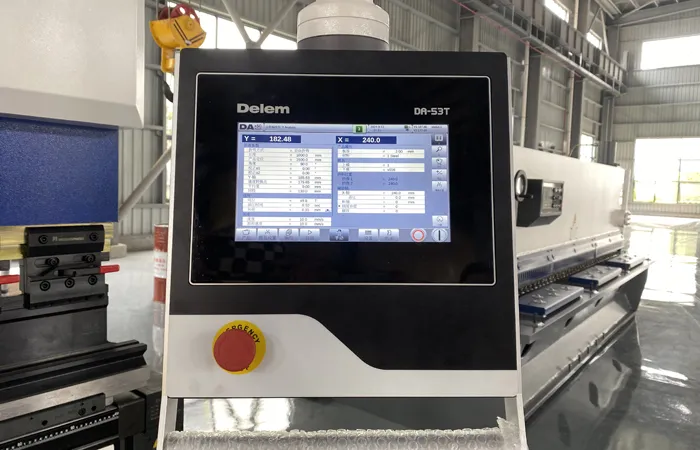

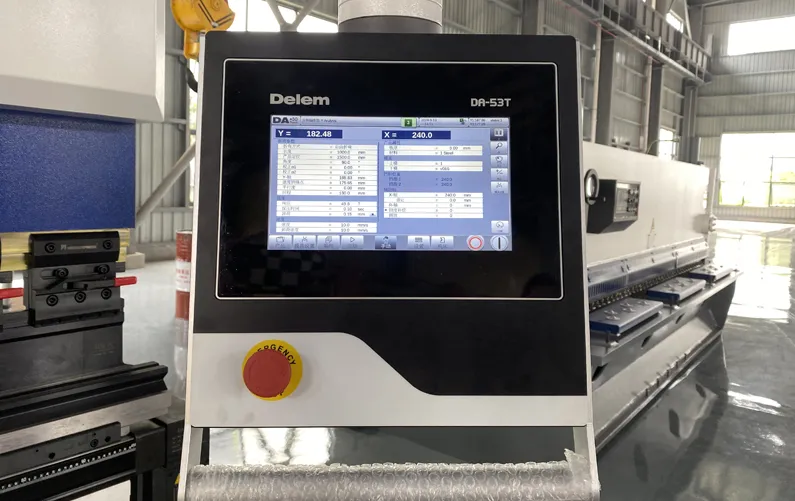

The Delem DA53T touchscreen controller offers user-friendly operation, 2D graphical programming, automatic bend sequence calculation, tool management, and production optimization for improved efficiency and accuracy.

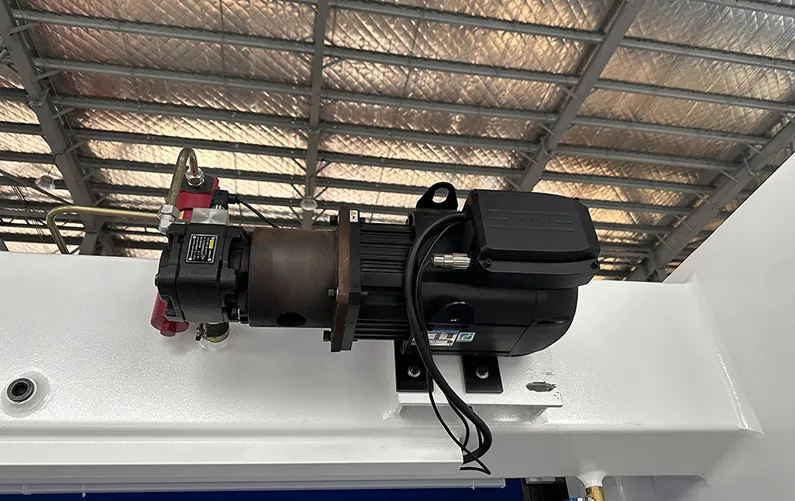

Advanced Y1 and Y2 servo-controlled hydraulic cylinders ensure precise ram positioning and consistent bending angles across the entire working length.

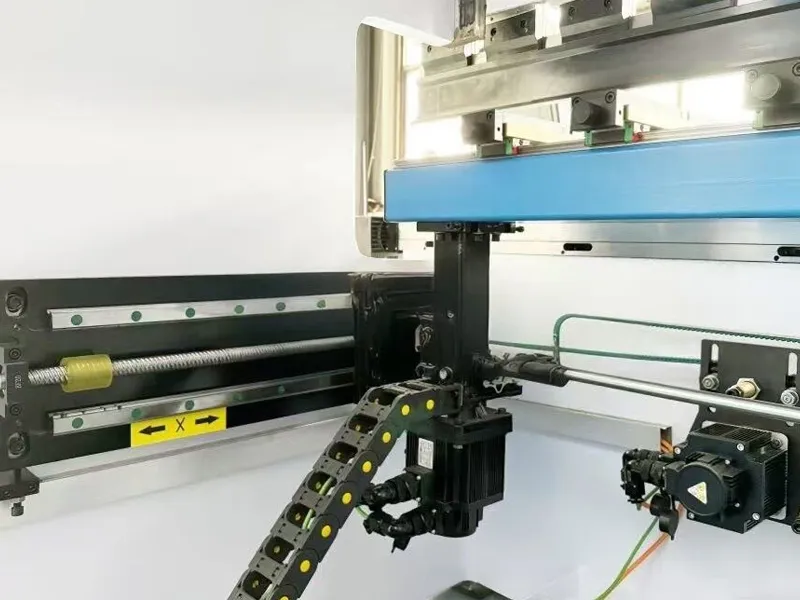

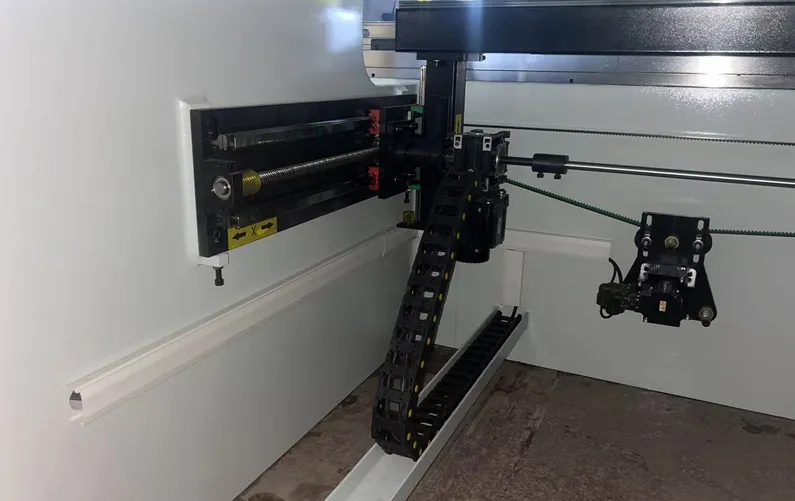

The CNC-controlled X and R axes provide accurate positioning for complex bending operations, reducing setup time and improving productivity.

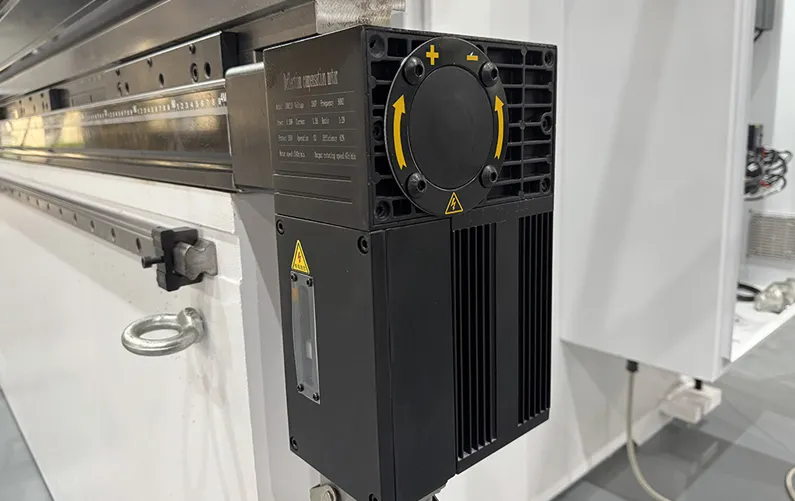

The crowning system automatically compensates for table deflection, ensuring uniform bending results and high-quality finished products.

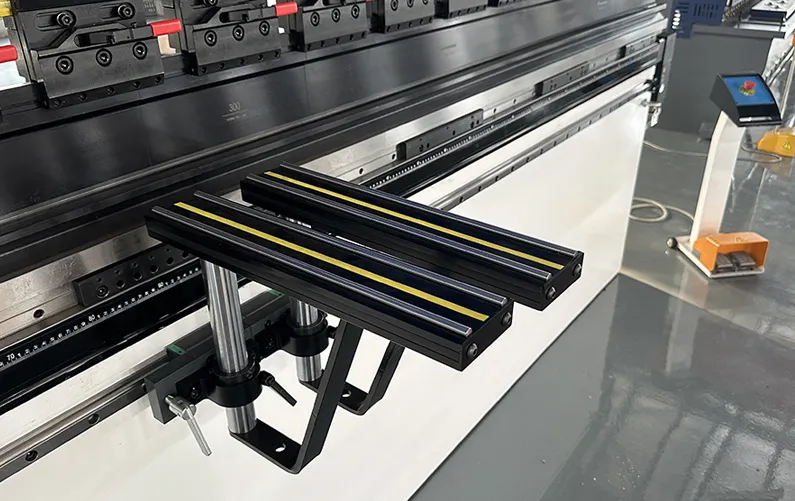

The machine frame is manufactured from high-strength steel and undergoes stress-relief treatment to guarantee long-term stability and durability.
Premium Components
Delem DA53T CNC Controller
Bosch Rexroth Hydraulic System
Siemens Main Motor
Schneider Electric Components
GIVI Linear Scales
Servo Motor Driven Backgauge
