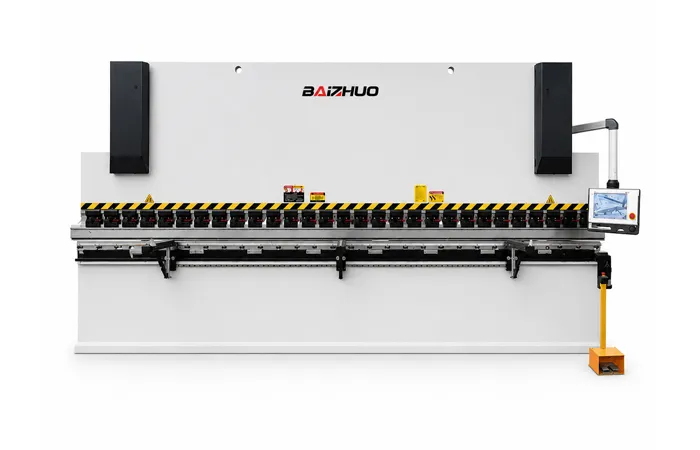

The WE67K 200T/6100mm CNC Electro-Hydraulic Press Brake with CT15 Control System is a high-performance sheet metal bending machine designed for precision, stability, and heavy-duty industrial applications.
Manufactured by BAIZHUO CNC, this model combines advanced electro-hydraulic synchronous control technology with a reinforced machine frame, ensuring high bending accuracy across long workpieces up to 6100mm bending length.
It is widely used in steel structure fabrication, construction machinery, power cabinets, elevator manufacturing, and industrial metal processing industries.
Achieve flawless 6-meter bending accuracy with the BAIZHUO 200T/6100mm electro-hydraulic synchronized CNC press brake. Specifically engineered for long-span heavy fabrication, this premium metal forming machine tool eliminates structural deflection and angular deviation across its entire 6100mm bending length.
• CNC press brake 200T 6100mm
• WE67K hydraulic press brake machine
• CT15 CNC press brake system
• electro-hydraulic press brake manufacturer China
• sheet metal bending machine 6 meter
• 200 ton press brake for steel plate
• CNC bending machine factory direct
This CNC press brake is suitable for:
• Steel structure fabrication
• Shipbuilding industry
• Elevator panels
• Electrical cabinets
• Machinery manufacturing
• Industrial metal processing
• Swiss Cybelec CybTouch 15 (CT15) Control: This advanced touchscreen CNC unit offers intuitive 2D graphical programming, automated bending sequence calculations, and immediate angle corrections, dramatically reducing setup times for novice operators.
• Closed-Loop Electro-Hydraulic Precision: Driven by world-class Bosch Rexroth proportional valves and high-precision linear scales, the Y1 and Y2 axes maintain a continuous closed-loop synchronization accuracy of ±0.01.
• Intelligent CNC Crowning Bed: To ensure perfectly uniform angles from end to end on heavy plates, a heavy-duty mechanical crowning system is fully managed by the CT15 controller to compensate dynamically for frame deflection under peak tonnage loads.
Constructed on an FEA-optimized, stress-relieved heavy steel frame and powered by reliable Siemens main motors, this high-efficiency press brake provides the ultimate throughput for your workshop. Contact BAIZHUO today for factory-wholesale quotes!
• Direct factory manufacturer in China
• CE standard production system
• High-quality Rexroth / Siemens optional components
• Strong after-sales support
• Custom machine configuration available
• Export experience to global markets
BAIZHUO focuses on delivering high precision, high stability, and long service life CNC sheet metal machines.
Global Market Applications
Contact BAIZHUO CNC
For quotation or technical support:
• Email: zhouhaitao@baizhuocnc.com
• WhatsApp: +86 15722516447
• Website: https://www.baizhuocnc.com

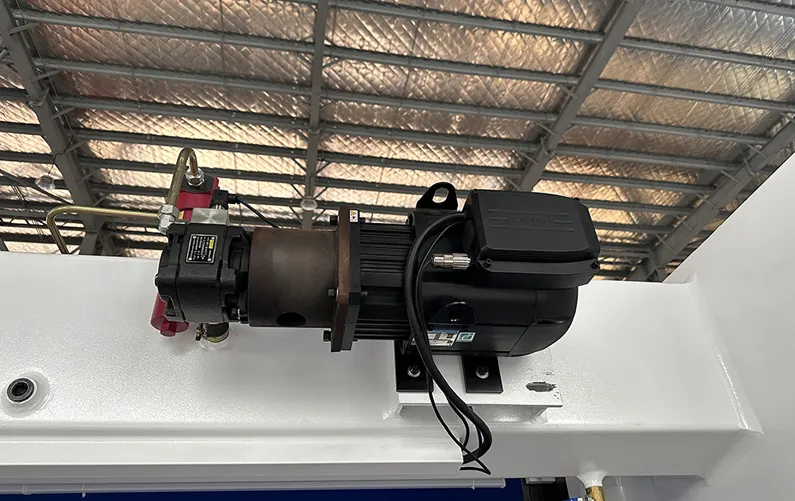

The machine adopts a closed-loop electro-hydraulic servo system, equipped with dual linear encoders on Y1 and Y2 axes. This ensures real-time synchronization and maintains bending accuracy along the entire 6.1-meter working length.

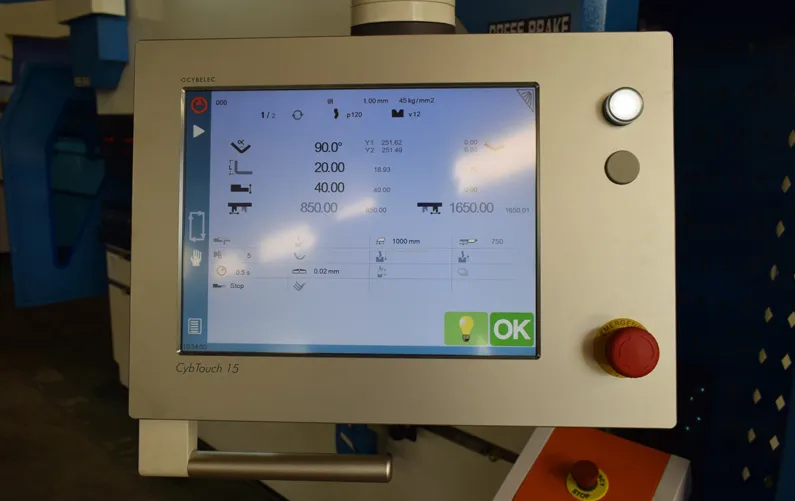

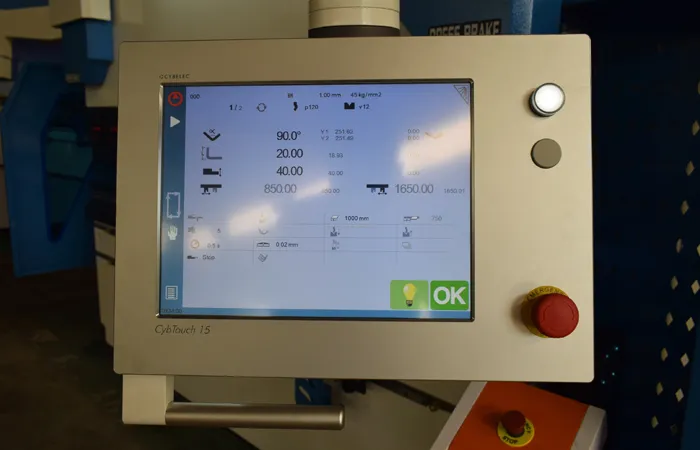

The CT15 CNC system provides intelligent bending programming with:
• 2D graphic programming interface
• Automatic bending sequence calculation
• Multi-step programming memory
• Easy operation touchscreen interface
• Precise back gauge positioning control
This system significantly improves operator efficiency and reduces setup time.

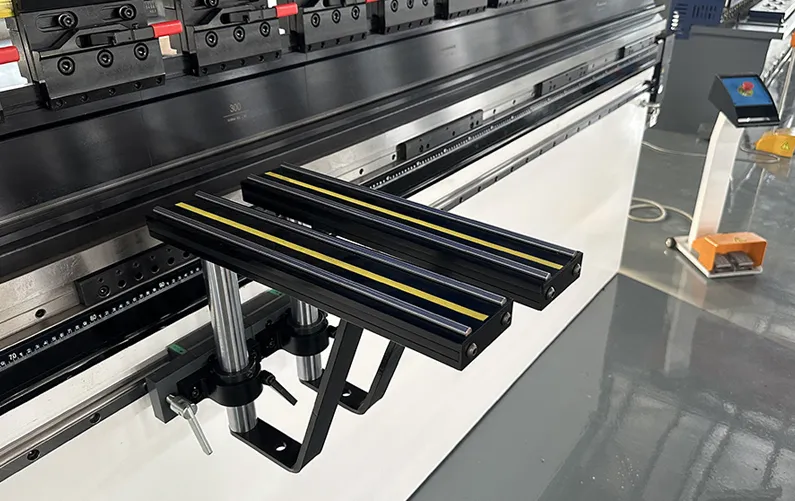

The machine frame is designed using finite element analysis (FEA) and undergoes full stress-relief heat treatment after welding.
This ensures:
• Long-term structural stability
• No deformation during heavy load bending
• High repeat positioning accuracy

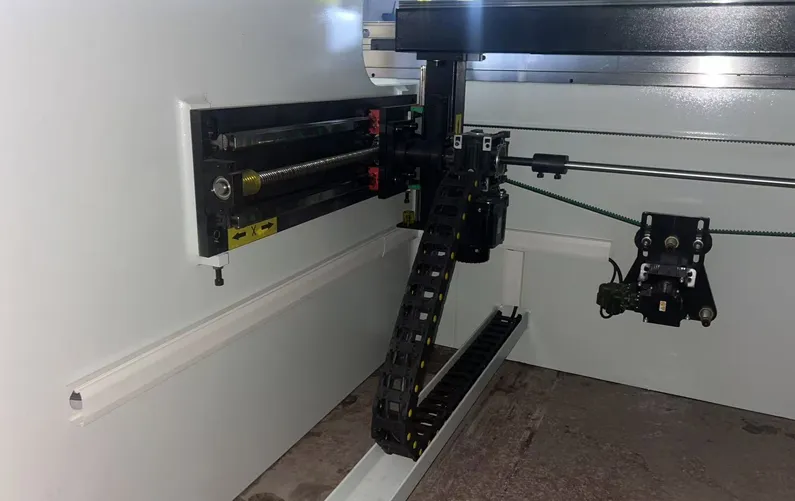

The CNC-controlled back gauge system provides fast and accurate positioning of sheet metal, ensuring consistency in mass production environments.
Optional multi-axis configurations improve flexibility for complex bending parts.
The optimized hydraulic system reduces energy consumption while maintaining high pressure stability. This ensures:
• Lower operating cost
• Reduced oil temperature rise
• Longer hydraulic component life
