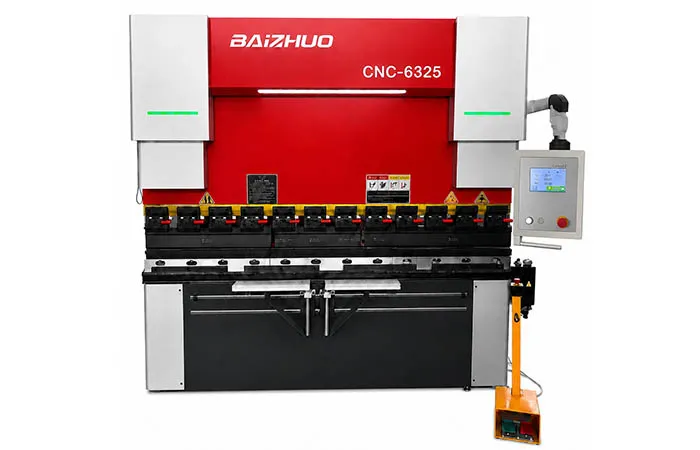

The BAIZHUO 63T/2500mm Electro-Hydraulic CNC Press Brake is a compact and efficient sheet metal bending machine designed for precision bending applications in fabrication workshops, metalworking factories, HVAC production, electrical cabinets, automotive components, and general sheet metal manufacturing.
With a 63-ton nominal bending force and 2500mm maximum bending length, this CNC press brake provides an excellent balance between bending capacity, machine size, operating efficiency, and cost.
Equipped with a CT8 CNC controller, electro-hydraulic synchronized drive system, CNC backgauge, precision linear guides, and rigid welded machine frame, the machine is designed for stable operation and repeatable bending performance.
The overall steel frame welded structure makes the bending machine robust, highly rigid, and highly resistant to impact and explosion.
It is equipped with a dedicated CNC system for bending machines manufactured by DELEM (or other CNC systems for shearing and folding machines specified by the customer).
The rear material (X), smooth part path, or travel distance (Y) are controlled automatically by computer.
The rear material uses both average lead screws and precision ball screws.
The mechanical steel plate welded structure uses VSR to eliminate internal stress, resulting in high mechanical strength and good rigidity. 7. Hydraulic dual-cylinder drive, mechanical block, and torsion shaft are synchronized, ensuring smooth and reliable operation with high precision.
Nominal Bending Force: 63 Ton / 630 kN
Maximum Bending Length: 2500 mm

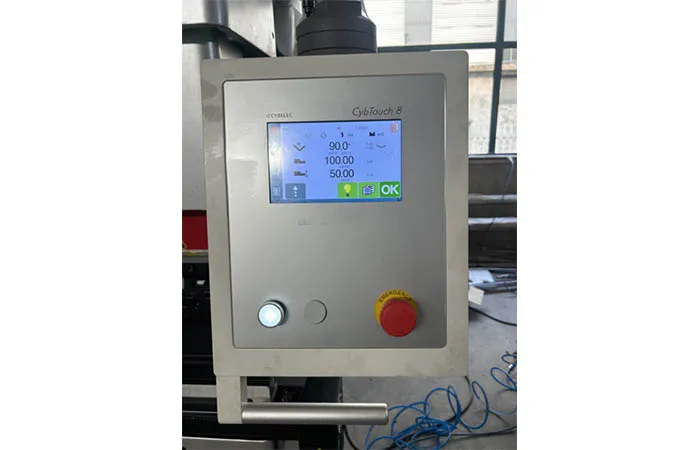

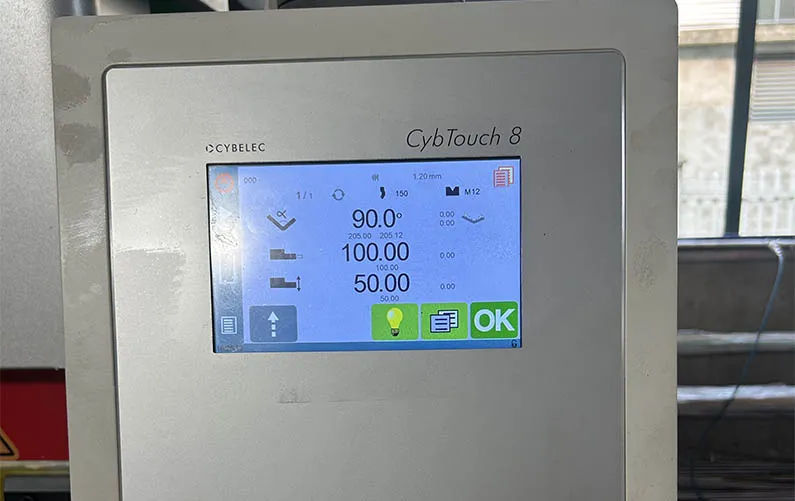

CNC Controller: CT8
Drive System: Electro-hydraulic synchronized system
CNC Axes: Y + X
High-rigidity welded machine frame
CNC-controlled ram movement
Motorized rear backgauge
Precision linear guide and ball screw system
Hydraulic overload protection
Fast and repeatable positioning
Suitable for mild steel, stainless steel and other sheet metals
Custom tooling and configuration available
| Item | Specification |
| Machine Model | BAIZHUO 63T/2500 |
| Machine Type | Electro-Hydraulic CNC Press Brake |
| Nominal Force | 630 kN / 63 Ton |
| Maximum Bending Length | 2500 mm |
| CNC System | CT8 |
| CNC Axes | Y + X |
| Control Method | CNC |
| Hydraulic System | Electro-Hydraulic Synchronous |
| Main Motor | 5.5 kW* |
| Throat Depth | Approx. 250 mm* |
| Ram Stroke | Approx. 100 mm* |
| Daylight Opening | Approx. 320 mm* |
| Backgauge | CNC Motorized Backgauge |
| Machine Frame | Welded Steel Construction |
| Safety System | Safety Guard / Emergency Stop |
| Tooling | Standard Press Brake Tooling |
| Application | Sheet Metal Bending |
Final technical parameters can be customized according to customer requirements and machine configuration.
The Laimore MT15 CNC controller features a smart touchscreen interface, high-precision bending control, and easy operation for hydraulic CNC press brakes. It supports automatic programming, real-time parameter adjustment, and stable multi-axis synchronization, improving sheet metal bending accuracy, production efficiency, and overall machine performance for modern metal fabrication industries.
The high-performance servo motor system delivers precise backgauge positioning, stable transmission, and efficient motion control for CNC press brakes. Featuring low noise, energy saving, and fast response speed, it improves bending accuracy, machine stability, and production efficiency, making it ideal for modern sheet metal fabrication and industrial metal processing applications.
The high-precision CNC backgauge system ensures accurate positioning and stable movement for sheet metal bending. Equipped with a servo motor, linear guide rails, and ball screw transmission, it delivers fast response, high repeatability, and improved bending efficiency. Ideal for precision metal fabrication and modern hydraulic CNC press brake applications.
The CNC press brake backgauge system features high-precision linear guide rails and ball screw transmission for smooth and accurate positioning. Designed for efficient sheet metal bending, it offers fast movement, stable operation, and excellent repeatability, improving bending accuracy and productivity in modern hydraulic CNC press brake applications.
The CNC press brake hydraulic cylinder delivers stable pressure control, smooth operation, and high bending accuracy. Manufactured with precision machining technology and durable sealing components, it ensures reliable synchronization, long service life, and efficient hydraulic performance for heavy-duty sheet metal bending and industrial metal fabrication applications.
Upgrade your metal fabrication with our heavy-duty CNC backgauge. Engineered for maximum stability and accuracy, this multi-axis system ensures precise sheet positioning for complex bending tasks. Featuring durable finger stops and a rugged linear guide design, it minimizes setup time while maximizing repeatability. Ideal for industrial press brakes requiring high-speed, reliable performance.
Enhance your bending precision with our high-quality press brake tooling. This set features a hardened top punch and a versatile multi-V block die, designed for seamless compatibility with various plate thicknesses. Crafted from heavy-duty alloy steel, our tools ensure exceptional wear resistance and long-term accuracy for all your sheet metal fabrication needs.
Ensure maximum safety and hands-free control with our heavy-duty foot pedal switch. Designed for CNC press brakes and industrial machinery, it features a responsive dual-pedal system and a highly visible emergency stop button. Built for durability in harsh workshop environments, this ergonomic controller enhances operational efficiency and workplace safety standards.
Optimize your machinery with our advanced electrical control cabinet. Featuring high-performance Inovance VFDs and precision servo drives, this integrated system ensures stable power distribution and accurate motor control. Designed for CNC press brakes, the organized wiring and industrial-grade components guarantee long-term reliability, safety, and high-speed operational efficiency.
High-precision control system ensures excellent positioning accuracy.
High efficiency, low noise operation, and reduced energy consumption。
Wide speed adjustment range to meet various processing requirements.
Stable operation and high reliability, reducing equipment failures and maintenance costs.
Ensure micron-level accuracy with our GIVI MISURE linear scale. Specifically designed for CNC press brake Y1 and Y2 axis positioning, this optical linear encoder provides real-time feedback for perfect bending synchronization. Featuring a robust, vibration-resistant housing and high-speed data transmission, it guarantees long-term reliability and superior repeat accuracy in metal fabrication.
