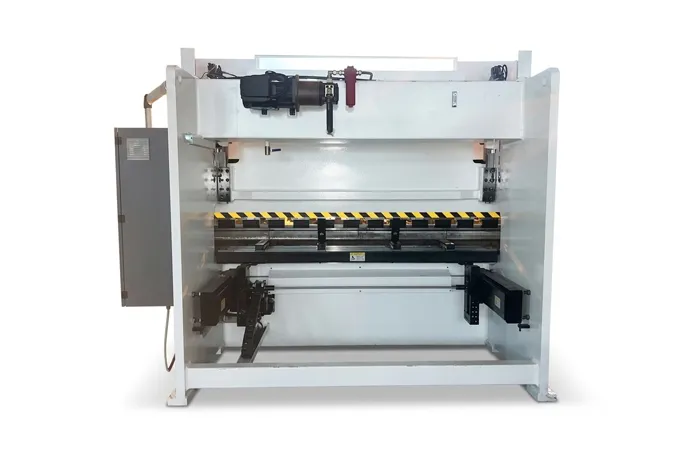

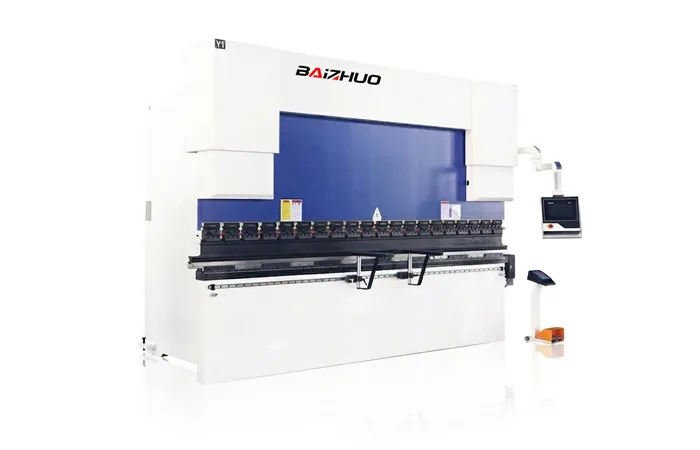

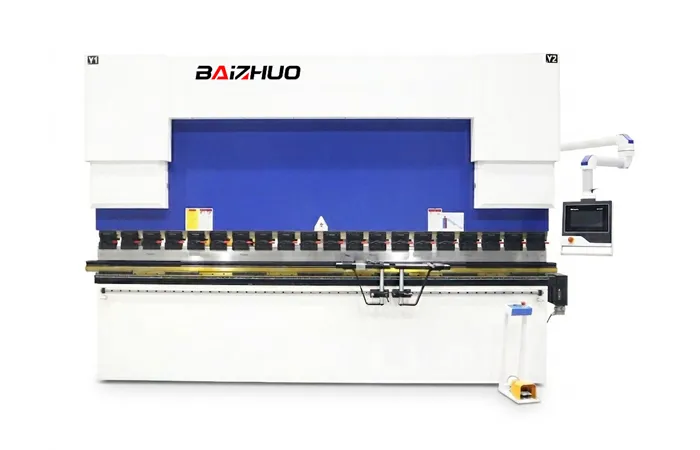

160T/4000mm CNC Press Brake Machine

Key Features

1. High Bending Capacity

• Bending force: 160 Ton

• Bending length: 4000 mm

• Suitable for stainless steel, carbon steel, aluminum, and other metals

2. Advanced CNC Control System

Equipped with world-class CNC controllers such as DA53T, DA66T, or CybTouch, ensuring:

• Easy programming

• High precision bending

• Automatic angle calculation

3. Precision Backgauge System

• High-speed servo motor-driven backgauge

• Ball screw and linear guide rail system

• Positioning accuracy up to ±0.01mm

4. Durable Hydraulic System

• Stable and reliable hydraulic components

• Overload protection

• Long service life with minimal maintenance

5. High-Quality Machine Frame

• Welded steel structure

• Stress relief treatment for long-term stability

• Strong rigidity ensures consistent performance

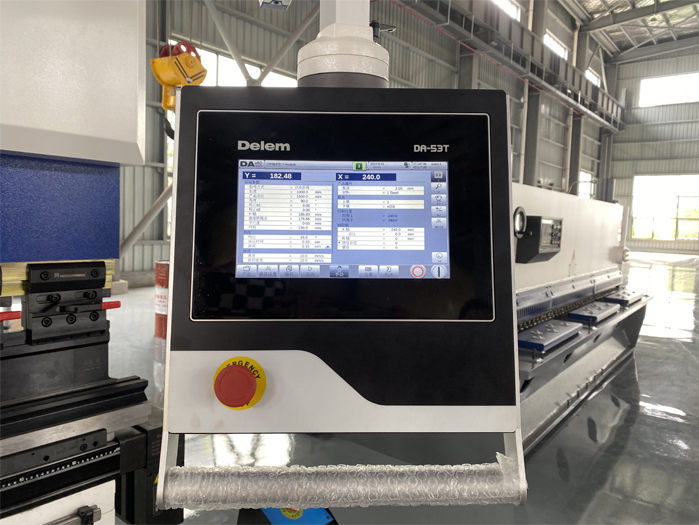

Delem DA-53T is one of the most popular CNC systems in the press brake industry, featuring:

• 10.1” high-resolution color TFT display

• Touchscreen operation for easy programming

• Automatic bending sequence calculation

• Angle correction and compensation

• Multi-step programming capability

• USB interface for data backup

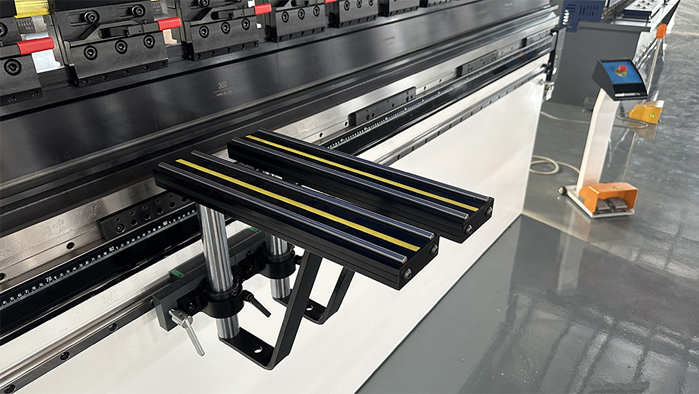

The machine is equipped with a robust front support arm system, designed for enhanced productivity and operator convenience:

• Adjustable height and position

• Linear guide movement for smooth sliding

• High load-bearing capacity

• Anti-slip surface design (as shown in image)

• Ideal for large sheet metal support

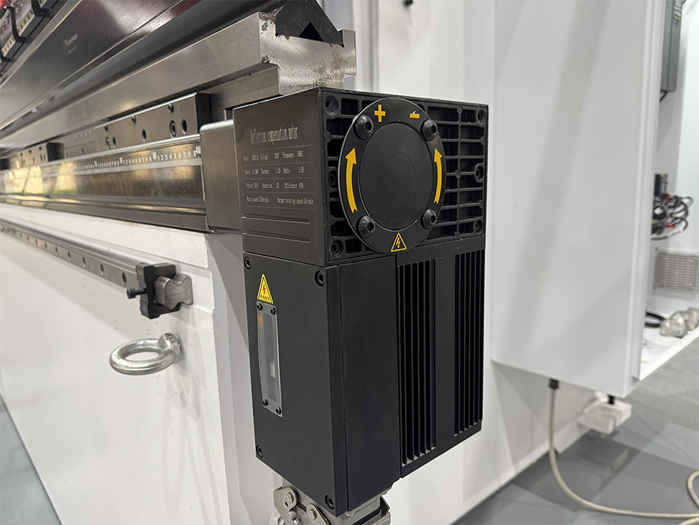

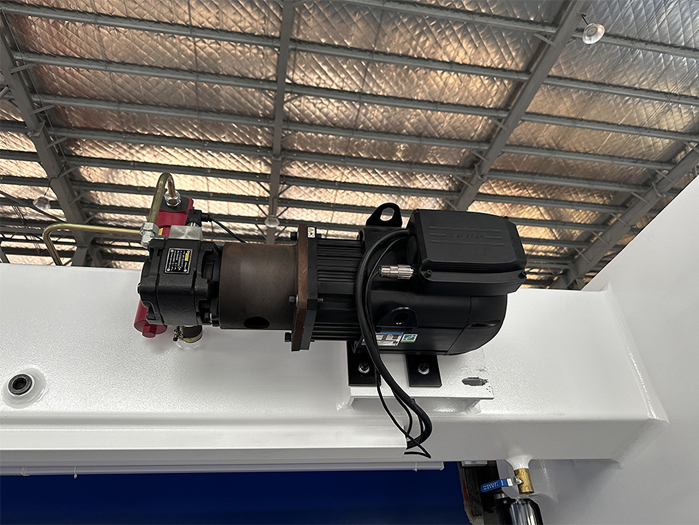

Main Servo Motor

1.High-precision control system ensures excellent positioning accuracy.

2.High efficiency, low noise operation, and reduced energy consumption。

3. Wide speed adjustment range to meet various processing requirements.

4. Stable operation and high reliability, reducing equipment failures and maintenance costs.

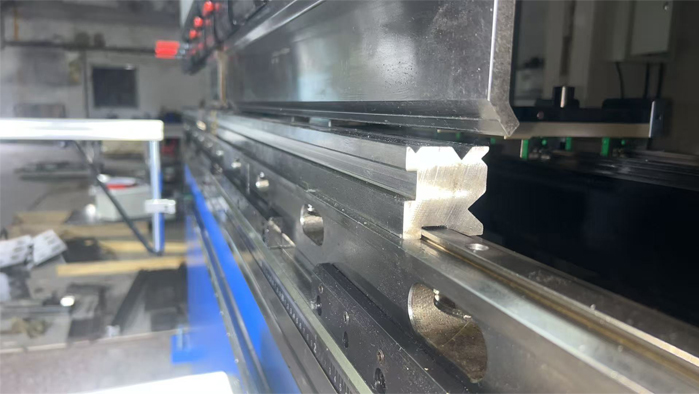

CNC Punching Machine & Molds

1. Standard CNC V-type dies with various slot sizes and shapes for easy replacement, suitable for bending conventional sheet metal with high cost-effectiveness.

2. CNC V-type die workbench for convenient installation of sectional dies.

Scale from Italy GIVI

The slider position signal is fed back to the controller via the grating ruler, and the CNC controller adjusts the fuel supply of the oil tank.

By changing the opening degree of the synchronous valve, the sliders (Y1, Y2) are controlled to run at the same frequency to maintain the parallel state of the workbench.

High-Efficiency Crowning System for CNC Press Brake

Eliminate bending deflection with our motorized mechanical crowning system. Engineered for precision, it ensures consistent angles across the full bed length, enhancing accuracy and reducing waste in high-tonnage sheet metal fabrication.

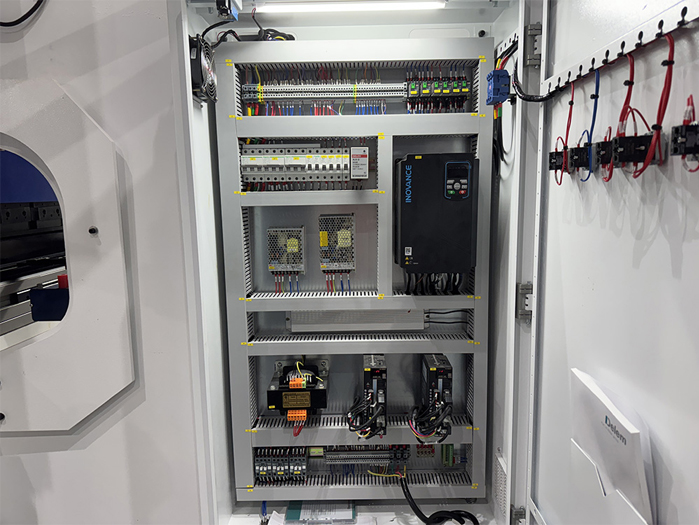

High-Performance Electrical Control Cabinet for CNC Machinery

Our integrated control cabinets feature world-class components like Inovance drives and Schneider electrics. Designed for stability and safety, they ensure precision synchronization and reliable operation for industrial press brakes and high-speed CNC systems.

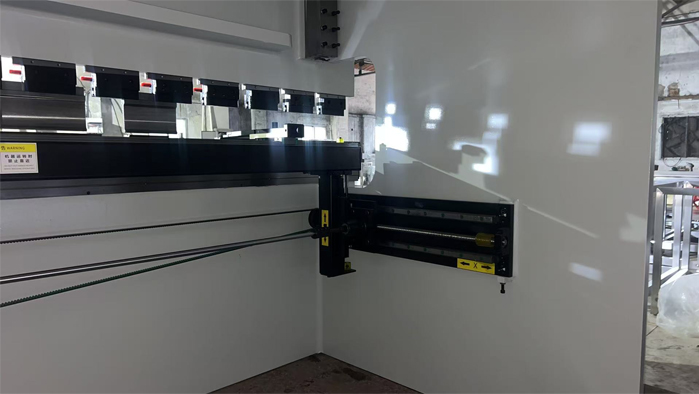

Backgauge

Close-up of BAiZHUO X+R axis backgauge with precision ball screw and helical gear system.

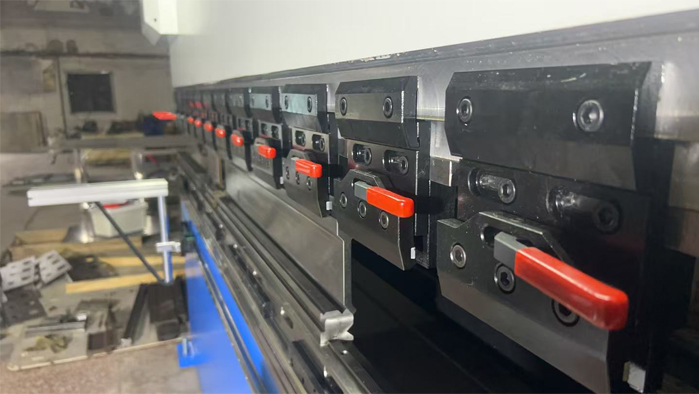

Quick Clamping System

High-Efficiency Quick Clamping System for CNC Press Brakes. Featuring a heavy-duty design for rapid mold changes, ensuring precise alignment, enhanced safety, and reduced downtime in sheet metal fabrication and industrial manufacturing.
