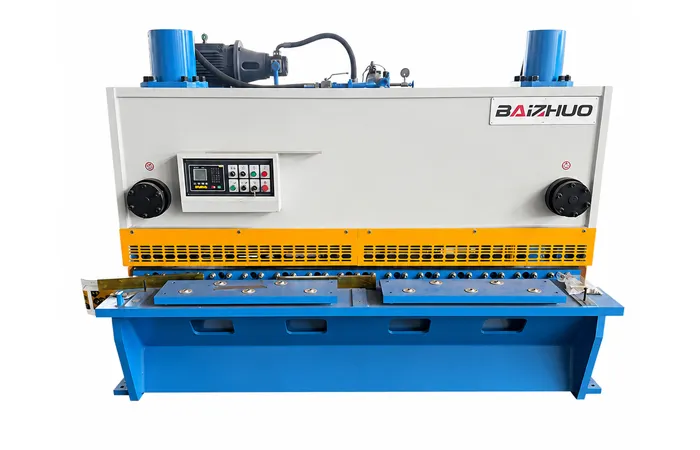

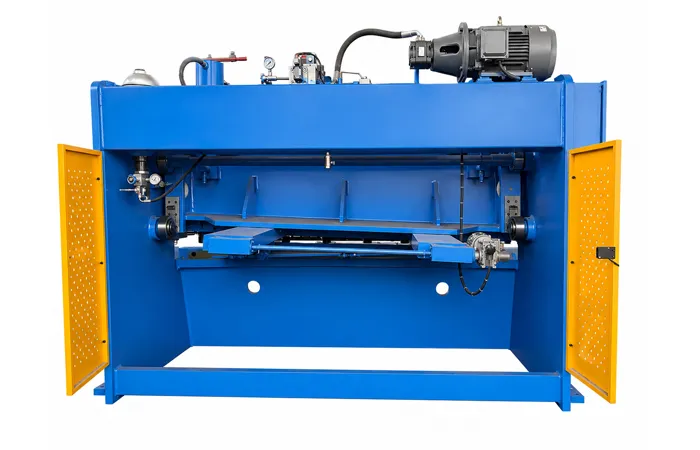

Designed as a high-efficiency cutting solution for demanding metal fabrication workshops, the BAIZHUO 12×2500mm Hydraulic Guillotine Shearing Machine delivers exceptional cutting accuracy, superior edge quality, and extended blade service life. With a maximum cutting capacity of 12 mm carbon steel and an effective cutting length of 2500 mm, it is an ideal choice for steel structure fabrication, pressure vessel manufacturing, storage tank production, and general heavy industrial applications.
| Model | Cutting Thickness | Cutting Length | Cutting Angle | Throat Depth | Backgauge Range | Strokes | Main Motor | Weight | Overall Dimensions LxWxH |
| mm | mm | ° | mm | mm | cycle/min | km | ton | mm | |
| 4x2500 | 4 | 2500 | 1.5 | 100 | 20-600 | 18 | 5.5 | 3.4 | 3200x1600x1600 |
| 4x3200 | 4 | 3200 | 1.5 | 100 | 20-600 | 19 | 5.5 | 5 | 3900x1600x1600 |
| 4x4000 | 4 | 4000 | 1.5 | 100 | 20-600 | 14 | 7.5 | 6.2 | 4700x1600x1600 |
| 4x5000 | 4 | 5000 | 1.5 | 100 | 20-600 | 12 | 11 | 10.6 | 5800x1750x1850 |
| 4x6000 | 4 | 6000 | 1.5 | 100 | 20-600 | 8 | 11 | 13.5 | 6800x1750x1850 |
| 6x2500 | 6 | 2500 | 1.5 | 100 | 20-600 | 17 | 7.5 | 5.2 | 3200x1650x1800 |
| 6x3200 | 6 | 3200 | 1.5 | 100 | 20-600 | 15 | 7.5 | 6.2 | 3900x1650x1800 |
| 6x4000 | 6 | 4000 | 1.5 | 100 | 20-600 | 12 | 7.5 | 7.3 | 4700x1650x1800 |
| 6x5000 | 6 | 5000 | 1.5 | 100 | 20-600 | 10 | 11 | 10.8 | 5800x1800x1950 |
| 6x6000 | 6 | 6000 | 2 | 100 | 20-600 | 8 | 11 | 14.5 | 6800x1800x1950 |
| 8x2500 | 8 | 2500 | 2 | 100 | 20-600 | 16 | 7.5 | 5.8 | 3200x1700x1850 |
| 8x3200 | 8 | 3200 | 2 | 100 | 20-600 | 14 | 7.5 | 6.9 | 3900x1700x1850 |
| 8x4000 | 8 | 4000 | 2 | 100 | 20-600 | 11 | 7.5 | 8 | 4700x1700x1850 |
| 8x5000 | 8 | 5000 | 2 | 100 | 20-600 | 10 | 11 | 12 | 5800x1900x2100 |
| 8x6000 | 8 | 6000 | 2 | 120 | 20-600 | 8 | 11 | 19 | 6800x1900x2200 |
| 10x2500 | 10 | 2500 | 2 | 120 | 20-600 | 12 | 11 | 6.9 | 3200x1850x1900 |
| 10x3200 | 10 | 3200 | 2 | 120 | 20-600 | 10 | 11 | 7.8 | 3900x1850x1900 |
| 10x4000 | 10 | 4000 | 2 | 120 | 20-600 | 8 | 18.5 | 10.1 | 4700x1850x1900 |
| 10x5000 | 10 | 5000 | 2 | 120 | 20-600 | 7 | 18.5 | 15 | 5800x2000x2150 |
| 10x6000 | 10 | 6000 | 2 | 120 | 20-600 | 6 | 18.5 | 21.5 | 6800x2000x2500 |
| 12x2500 | 12 | 2500 | 2.5 | 120 | 20-600 | 11 | 18.5 | 8.9 | 3200x2050x2150 |
| 12x3200 | 12 | 3200 | 2.5 | 120 | 20-600 | 10 | 18.5 | 10 | 3900x2050x2150 |
| 12x4000 | 12 | 4000 | 2.5 | 120 | 20-600 | 8 | 18.5 | 13 | 4700x2050x2150 |
| 12x5000 | 12 | 5000 | 2.5 | 120 | 20-600 | 7 | 22 | 19 | 5800x2200x2200 |
| 12x6000 | 12 | 6000 | 2.5 | 120 | 20-600 | 6 | 22 | 26 | 6800x2400x2600 |
| 16x2500 | 16 | 2500 | 2.5 | 120 | 20-600 | 10 | 18.5 | 9.3 | 3200x2150x2250 |
| 16x3200 | 16 | 3200 | 2.5 | 120 | 20-600 | 9 | 18.5 | 11 | 3900x2150x2250 |
| 16x4000 | 16 | 4000 | 2.5 | 120 | 20-600 | 8 | 22 | 14.9 | 4700x2150x2250 |
| 16x5000 | 16 | 5000 | 2.5 | 120 | 20-600 | 6 | 30 | 21.3 | 5800x2500x2500 |
| 16x6000 | 16 | 6000 | 2.5 | 120 | 20-600 | 6 | 37 | 33 | 6800x2500x2700 |
| 20x2500 | 20 | 2500 | 3 | 120 | 20-600 | 8 | 22 | 15 | 3200x2250x2350 |
| 20x3200 | 20 | 3200 | 3 | 120 | 20-600 | 7 | 22 | 17.2 | 3900x2250x2350 |
| 20x4000 | 20 | 4000 | 3 | 120 | 20-600 | 6 | 30 | 19.8 | 4700x2350x2350 |
| 20x5000 | 20 | 5000 | 3 | 120 | 20-600 | 5 | 37 | 27 | 5800x2600x2700 |
| 20x6000 | 20 | 6000 | 3 | 120 | 20-600 | 4 | 37 | 44 | 6800x2600x2900 |
| 25x2500 | 25 | 2500 | 3 | 120 | 20-600 | 6 | 37 | 18 | 3200x2300x2500 |
| 25x3200 | 25 | 3200 | 3 | 120 | 20-600 | 5 | 37 | 22 | 3900x2300x2500 |
| 25x4000 | 25 | 4000 | 3.5 | 120 | 20-600 | 5 | 37 | 26 | 4700x2500x2600 |
| 25x5000 | 25 | 5000 | 3.5 | 120 | 20-600 | 4 | 45 | 34 | 5800x2700x2800 |
| 25x6000 | 25 | 6000 | 3.5 | 120 | 20-600 | 4 | 45 | 45 | 6800x2700x2900 |
When processing medium and thick plates up to 12 mm, the guillotine (vertical cutting) design offers significant technical advantages over traditional swing beam shears:
The upper blade carrier moves in a precise vertical linear motion, eliminating the twisting and distortion commonly associated with the arc movement of swing beam shears. This ensures excellent edge straightness, parallelism, and overall cutting accuracy.
The adjustable rake angle allows operators to optimize cutting performance for different material thicknesses:
• Smaller rake angles minimize sheet distortion when cutting thin materials.
• Larger rake angles reduce cutting force and improve efficiency when processing thick plates up to 12 mm.
This flexibility improves cutting quality while maximizing machine performance.
The upper and lower blades utilize rectangular four-edge cutting blades, providing twice the usable cutting edges compared to the two-edge blades commonly found on swing beam shearing machines.
Benefits include:
• Longer blade service life
• Reduced maintenance costs
• Extended blade rotation intervals
• Lower operating expenses
The machine is equipped with the reliable ESTUN E21 NC Controller, providing precise closed-loop control of the backgauge (X-axis).
Key functions include:
• Storage for up to 40 programs
• Up to 25 cutting steps per program
• Automatic workpiece counting
• Power-off memory retention
• Automatic positioning control
The E21 system improves productivity while simplifying machine operation.
Every BAIZHUO 12×2500mm machine frame undergoes a strict full-furnace stress-relief heat treatment process after welding.
This critical manufacturing process:
• Eliminates residual welding stress
• Prevents long-term frame deformation
• Maintains geometric accuracy
• Ensures structural stability during decades of heavy-duty operation
As a result, the machine delivers reliable cutting performance and long-term durability.
The machine is equipped with multiple high-pressure independent hydraulic hold-down cylinders featuring protective pads.
During cutting, these cylinders firmly clamp the sheet material to prevent movement or slippage.
Advantages include:
• Improved cutting precision
• Reduced material deformation
• Enhanced operator safety
• More stable cutting performance
The BAIZHUO 12×2500mm Hydraulic Guillotine Shearing Machine is widely used in:
• Steel Structure Fabrication
• Pressure Vessel Manufacturing
• Storage Tank Production
• Construction Machinery
• Industrial Equipment Manufacturing
• Sheet Metal Processing Workshops
BAIZHUO CNC specializes in manufacturing high-performance sheet metal processing equipment, including:
• Hydraulic Guillotine Shearing Machines
• CNC Press Brakes
• Plate Rolling Machines
• Electro-Hydraulic Servo Press Brakes
With advanced manufacturing technology, strict quality control, and professional global support, BAIZHUO provides reliable solutions for metal fabrication businesses worldwide.

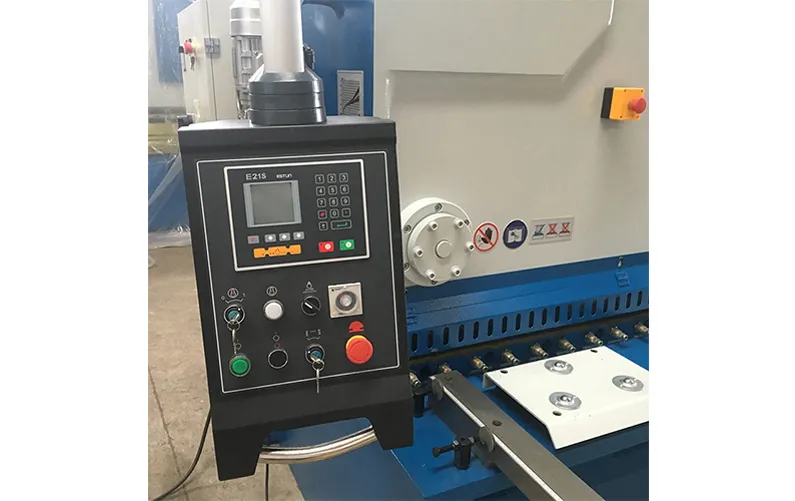

Streamline your metal cutting workflow with the ESTUN E21S digital controller, factory-installed on BAIZHUO high-efficiency hydraulic shearing machines. This highly reliable NC control unit delivers automated, precision positioning for your plate shear backgauge (X-axis).
Equipped with a high-definition LCD display and tactile keypad buttons, the E21S supports multi-step program editing, stroke count monitoring, and intelligent power-off memory. By preventing mechanical backlash and calculating material lengths instantly, it ensures high repeatable cutting accuracy across varying material thicknesses. Choose BAIZHUO shears configured with the cost-effective ESTUN E21S system for reliable workshop production.

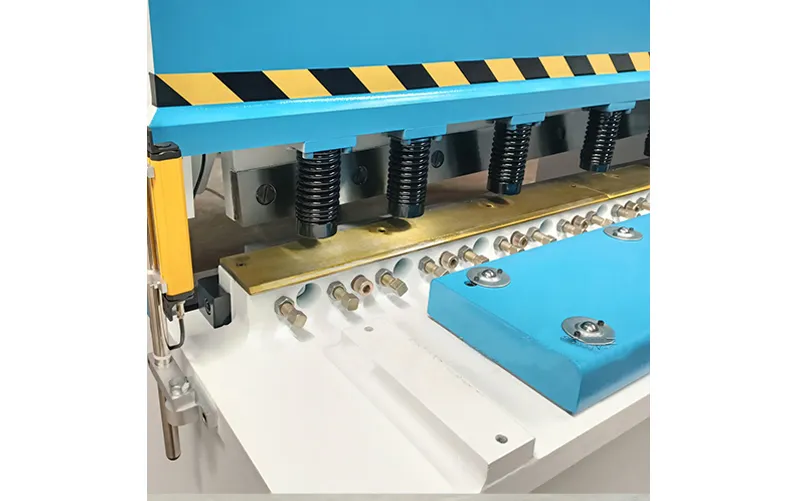

Meet international occupational safety standards and protect your operators with BAIZHUO advanced infrared safety light curtains. Designed as a critical upgrade for high-speed CNC press brakes and hydraulic shearing machines, these premium photoelectric barriers create a multi-beam protection zone around hazardous tooling areas.
Featuring a millisecond-level reaction speed, any beam interruption instantly halts the ram stroke movement, entirely eliminating workplace finger or hand injuries. Built with high ambient light immunity and rugged anti-vibration housings, our safety sensors fully satisfy strict CE and OSHA compliance protocols. Invest in BAIZHUO smart machinery to build a secure, liability-free metal fabrication workshop.

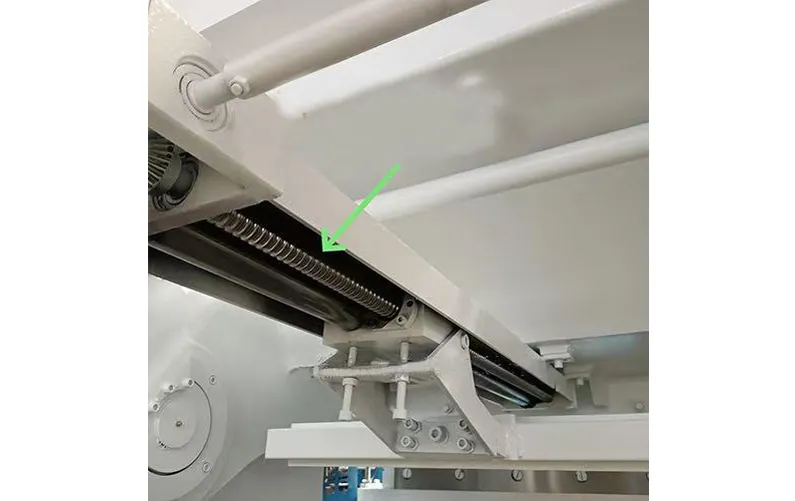

Achieve flawless sheet metal positioning with BAIZHUO high-precision backgauge systems, driving multi-axis synchronization on our premier CNC press brakes. We strictly configure our X-axis and R-axis transmission with original Taiwan HIWIN or TBI ball screws accompanied by heavy-duty linear guide rails.
Engineered with zero-backlash ball nut technology, this premium mechanical stack guarantees a repetitive positioning accuracy of up to 0.02mm. The smooth, low-friction rolling motion ensures ultra-fast positioning speeds while preventing structural wear under continuous high-speed industrial operations. Upgrade your workshop with BAIZHUO CNC precision to eliminate manual layout errors entirely.
Optimize your sheet metal handling efficiency with BAIZHUO heavy-duty front support arms, engineered for industrial CNC press brakes. To eliminate manual operators' fatigue and protect premium materials, our front support rail features integrated, smooth-turning roller bearings.
This anti-scratch mechanical solution allows operators to align, slide, and rotate heavy carbon steel or polished stainless steel sheets effortlessly without surface scoring. Mounted onto high-rigidity guide rails, the entire arm assembly shifts laterally with ease to adapt to varying workpieces. Upgrade your metal forming setup with BAIZHUO accessories for enhanced ergonomics and scratch-free processing.

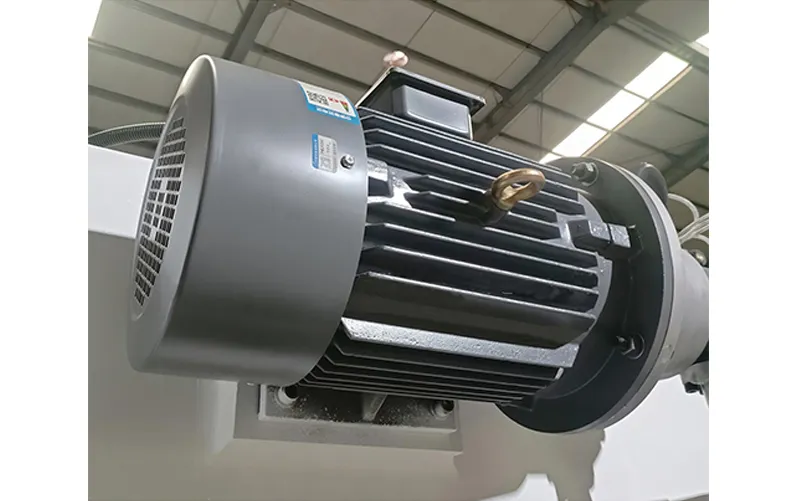

Power your metal forming cycles with original Siemens main motors, natively configured inside BAIZHUO high-performance press brakes and shearing machines. Engineered to deliver optimal torque efficiency and stable hydraulic pump driving, Siemens industrial motors feature premium-tier copper windings and IP55 dust and moisture protection.
They provide consistent power output under rigorous, high-tonnage sheet metal bending or high-frequency plate shearing workloads. By reducing heat generation and operating noise, these eco-friendly motors significantly lower enterprise electricity bills while protecting hydraulic systems from pressure drops. Invest in BAIZHUO CNC machinery driven by Siemens technology for unmatched shop-floor reliability.

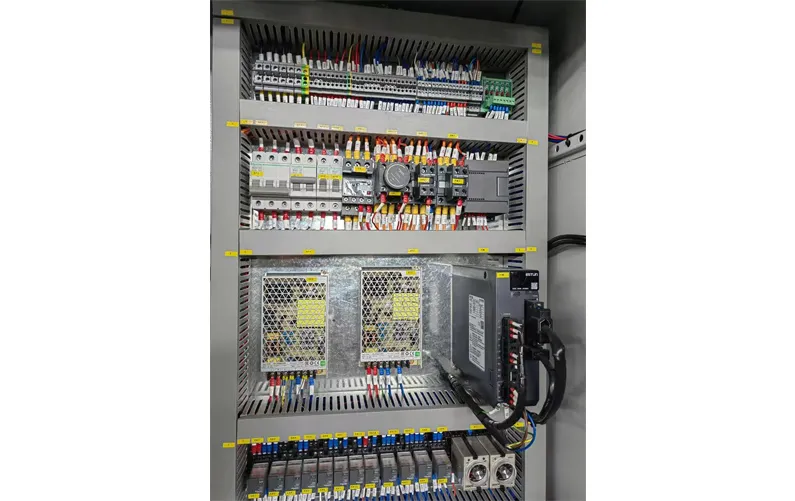

Maximize operational uptime with BAIZHUO high-standard electrical control cabinets, engineered for continuous industrial manufacturing. Our CNC press brakes and shearing machines feature highly structured electrical enclosures populated exclusively with original Schneider Electric components, professional circuit breakers, and heavy-duty AC contactors.
Every wire path is precisely routed through clean trunking grids and equipped with clear, permanent alphanumeric line-number tags for rapid diagnostics. Encased in an IP54 dust-proof, well-ventilated enclosure, our control panels safeguard electrical signaling against thermal buildup and heavy shop-floor dust. Choose BAIZHUO CNC machinery for unparalleled machine longevity and global spare parts availability.

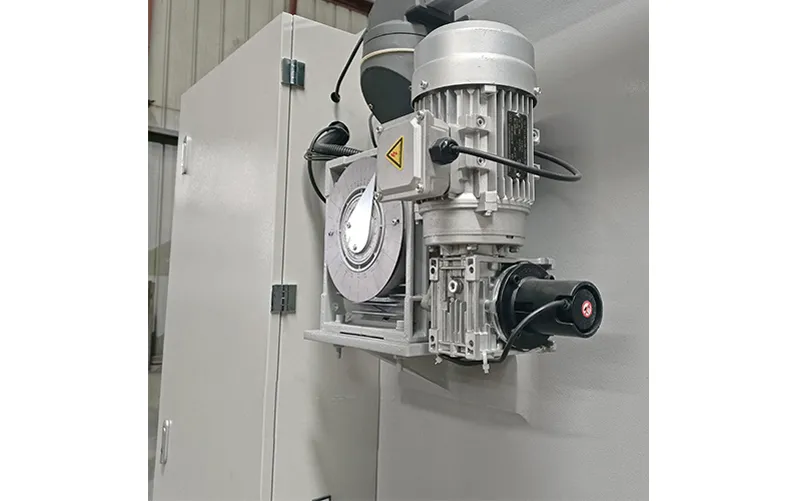

Eliminate manual downtime and achieve perfect cutting quality with the BAIZHUO motorized blade gap adjustment system. Factory-integrated into our premium hydraulic shearing machines, this motorized upgrade allows operators to tune the clearance between the upper and lower blades seamlessly within seconds.
Featuring a high-definition mechanical dial indicator gauge, it provides instant visual confirmation of the precise gap settings required for varying sheet thicknesses (e.g., from thin aluminum to 12mm heavy carbon steel). Prevent edge burrs, extend blade service lifespans, and accelerate your workshop output.

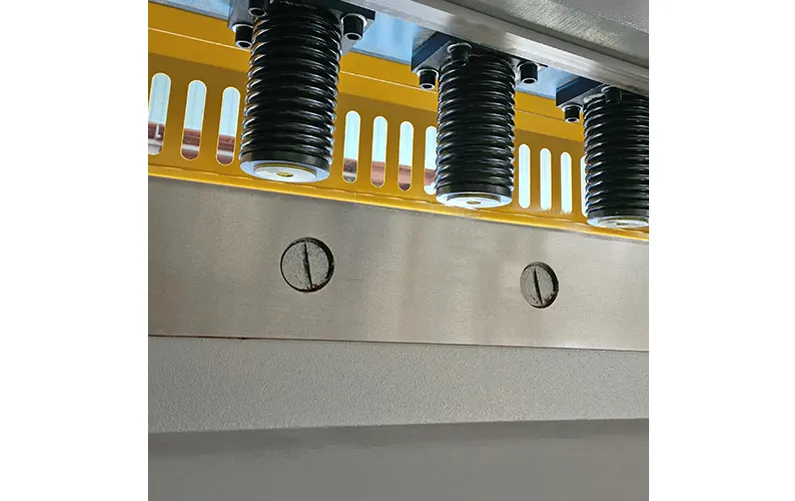

Maximize your workshop efficiency with BAIZHUO premium shearing machine blades, custom-engineered for both hydraulic guillotine shears and swing beam shearing machines. Manufactured from high-tensile 9CrSi and 6CrW2Si tool steel, our shear knives undergo professional vacuum heat treatment to achieve a hardness of 58-62 HRC.
These heavy-duty shear blades deliver exceptional wear resistance, minimizing micro-cracking and extending tool life during intensive metal plate processing. Experience burr-free, razor-sharp straight cuts on carbon steel, stainless steel, and aluminum sheets. Contact BAIZHUO CNC today for factory-direct wholesale pricing and custom size compatibility!

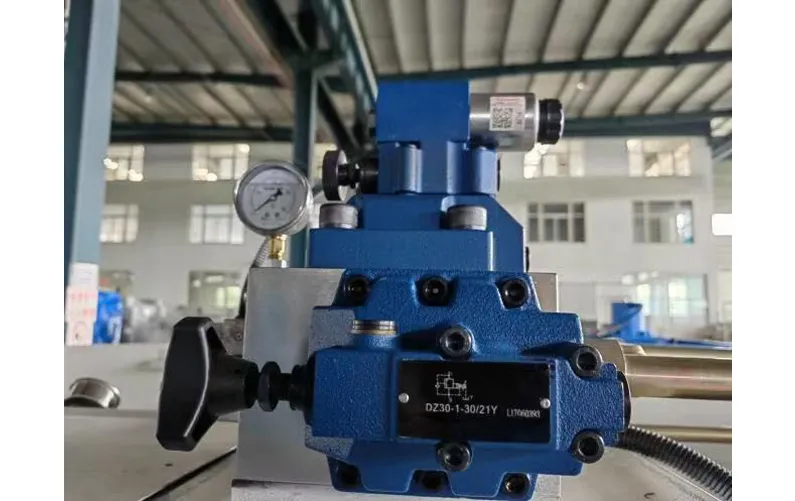

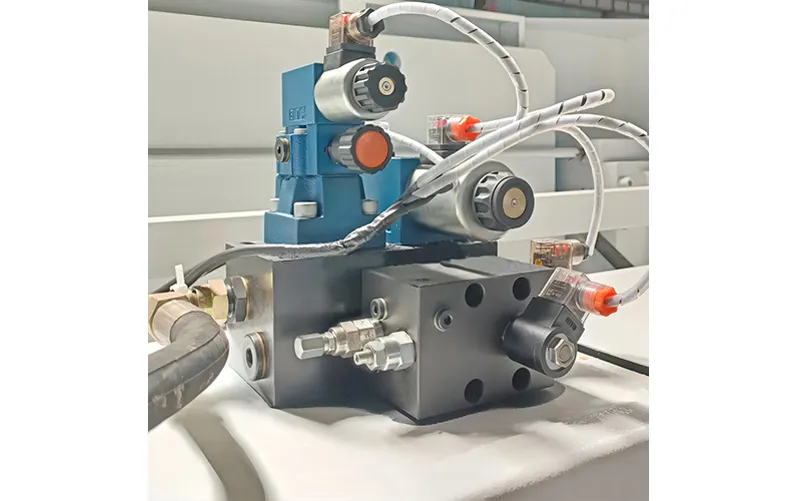

The genuine German Bosch Rexroth hydraulic valve system is factory-integrated into BAIZHUO high-end CNC press brakes and hydraulic shearing machines, ensuring exceptional bending and cutting accuracy while delivering outstanding leak-free hydraulic performance. Renowned worldwide for its advanced fluid power technology, the Bosch Rexroth proportional hydraulic system provides ultra-fast response times and highly stable pressure control for precision metal fabrication.
Engineered for continuous heavy-duty industrial operation, these premium hydraulic valve assemblies are designed to withstand high-pressure working cycles while effectively eliminating hydraulic shock. The system also maintains perfect synchronization between the Y1 and Y2 hydraulic cylinders, ensuring consistent ram movement, superior bending accuracy, and repeatable production results.
By choosing BAIZHUO metal forming machinery powered by genuine Bosch Rexroth hydraulic technology, manufacturers benefit from:
• Exceptional bending accuracy and repeatability
• Stable hydraulic pressure distribution
• Ultra-fast proportional valve response
• Perfect synchronization of the Y1 and Y2 cylinders
• Virtually leak-free hydraulic performance
• Reduced machine downtime
• Lower maintenance costs
• Long-term reliability in demanding industrial environments
Whether producing precision sheet metal components or operating in high-volume manufacturing, BAIZHUO CNC machines equipped with original Bosch Rexroth hydraulic systems provide the reliability, performance, and efficiency required by modern fabrication workshops.

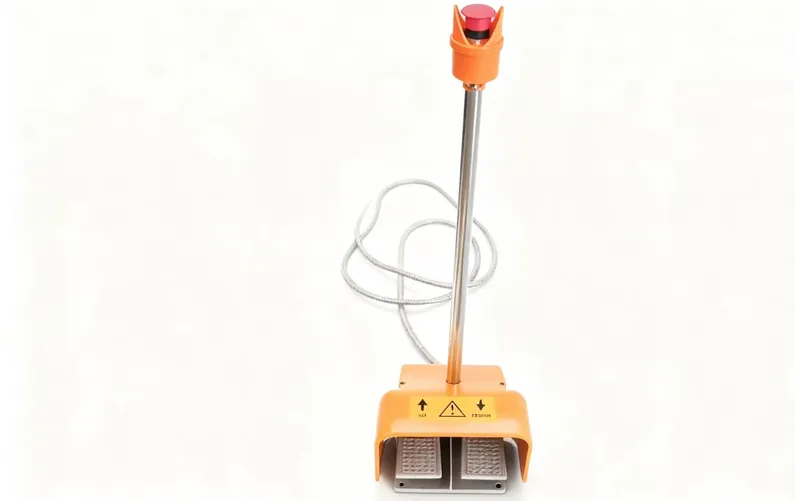

Boost workshop productivity and ensure CE-compliant safety with the BAIZHUO heavy-duty press brake foot switch pedal. Purpose-built for industrial CNC press brakes and hydraulic shearing machines, this dual-pedal unit enables smooth, hands-free machine stroke activation.
It features an integrated, high-visibility emergency stop button for instant cycle interruption and a robust protective shroud to prevent accidental foot insertion or impact hazards. Designed with an ergonomic overhead carrying handle for easy floor relocation and heavy-duty industrial wiring, our foot pedals offer maximum durability in harsh metal fabrication environments.
