Why Choose a Universal Plate Rolling Machine for Your Metal Fabrication Shop?

In modern heavy machinery manufacturing, pressure vessel production, and steel structure fabrication, selecting the right plate bending equipment is critical to meeting strict tolerance standards and maintaining high productivity.

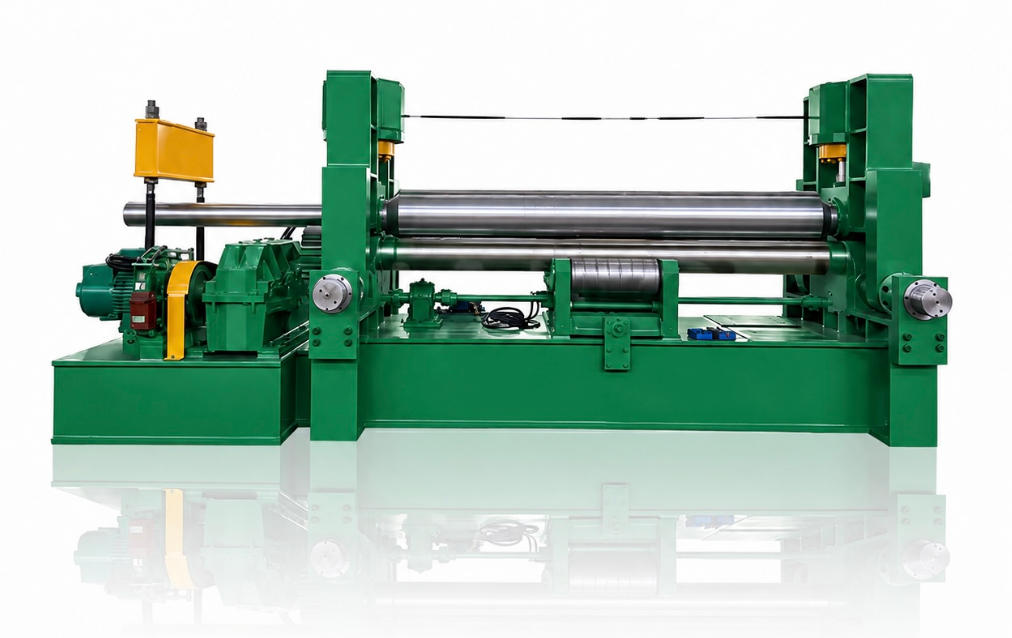

Among various metal forming tools, the Upper-Roll Universal Plate Rolling Machine (often referred to as the hydraulic 3-roll universal plate bending machine) stands out as one of the most flexible, efficient, and cost-effective solutions on the market.

If your factory is evaluating plate rolling machinery, understanding the specific design and operational benefits of universal plate rollers will help you make an informed investment. In this technical guide, Nantong Baizhuo CNC Machine Tool Co., Ltd. highlights the key reasons why a universal plate rolling machine should be your top choice.

Integrated High-Precision Plate End Pre-Bending

Traditional symmetrical 3-roll bending machines often leave long flat edges at both ends of the plate, requiring separate pre-bending equipment or pressing dies. The universal plate rolling machine completely eliminates this bottleneck.

· Horizontal Upper-Roll Movement: The upper roll can move both vertically (for curvature control) and horizontally (for asymmetric positioning relative to the lower rolls).

· Single-Pass Operation: By shifting the top roll horizontally, the machine applies direct bending pressure to the plate edges, completing precise end pre-bending and full cylinder rolling in a single feeding setup without flipping the plate.

· Minimal Remaining Straight Edges: Significantly reduces material waste and secondary trimming labor, ensuring superior roundness for downstream welding processes.

Multi-Shape Bending Versatility (Cylinders, Cones, and U-Shapes)

Contract fabricators and industrial manufacturers frequently deal with custom orders that vary in geometry, plate thickness, and material type. Universal plate bending machines offer exceptional versatility to meet diverse shop demands.

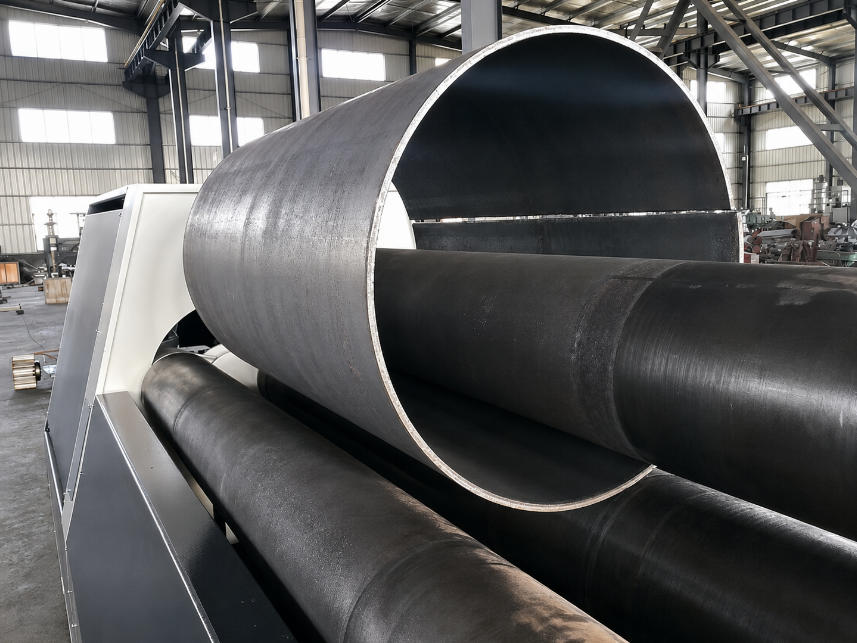

· Diverse Profiles: Capable of rolling carbon steel, stainless steel, and alloy plates into standard cylindrical shells, variable-diameter conical tanks, and U-shaped arc segments.

· Integrated Cone Bending Device: With a tilting upper roll mechanism and auxiliary side guides, rolling tapered conical shells becomes straightforward and highly repeatable.

· Broad Plate Thickness Range: Easily handles thin sheet metals as well as heavy-duty plates ranging from 3 mm to over 40mm

‬‭‬

Superior Structural Stability and Accuracy Control

Machining accuracy and equipment lifespan depend on rigid mechanical engineering and smart load distribution.

· Drum-Shaped Upper Roll & Adjusting Idlers: Universal plate rollers utilize a crown/drum-shaped upper roll and adjustable lower support idlers. This counteracts deflection under heavy loads, ensuring straightness across the full working length of thick plates.

· Fixed-Height Lower Rolls: The elevation of the two lower rolls remains fixed while driven by electric/hydraulic motors and reducers, providing a stable, low-profile loading line for operators.

· Longitudinal Alignment System: Helps eliminate sheet skewing during multi-pass rolling, maintaining edge alignment for high-quality seams.

Hydraulic Decompression and Easy Maintenance Design

To survive demanding workshop environments, machine durability and ease of servicing are essential.

· Hydraulic Decompression Technology: Advanced universal hydraulic systems incorporate shock-free decompression tech, preventing fluid hydraulic impact during pressure release, extending pipe and seal service life.

· Independent External Hydraulic Station: Located away from heat sources, the hydraulic power unit offers clear diagnostic control points, making routine fluid checks, filter cleaning, and maintenance simple and fast.

· Intuitive PLC/CNC Digital Control: Digital displacement readouts allow operators to set and monitor roll positions easily, reducing operator training time and human error.

Quick Comparison: Universal 3-Roll vs. Standard Symmetrical 3-Roll

Partner with Baizhuo CNC for High-Performance Plate Forming

Located in Haian Industrial Park, Nantong City, Jiangsu Province, Nantong Baizhuo CNC Machine Tool Co., Ltd. is a trusted Chinese manufacturer specializing in heavy-duty plate rolling machines, CNC press brakes, and hydraulic shearing machines.

Why Choose Baizhuo CNC Equipment?

· Heavy-Duty Construction: Built with high-grade forged rolls 42CrMo‬) undergoing full-body quenching and tempering for long-lasting performance.

· Custom Engineering Options: Available with CNC upgrades, hydraulic side/overhead support arms, and specialized cone-rolling attachments.

· Global Export Experience: Fully supported export logistics, international warranty coverage, and quick-response technical after-sales assistance.
