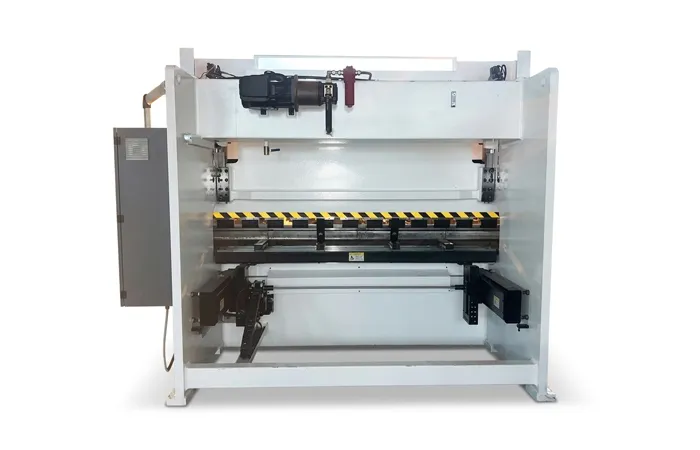

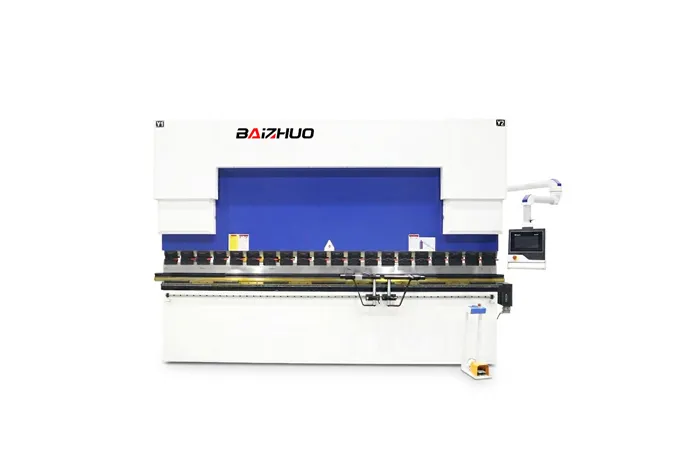

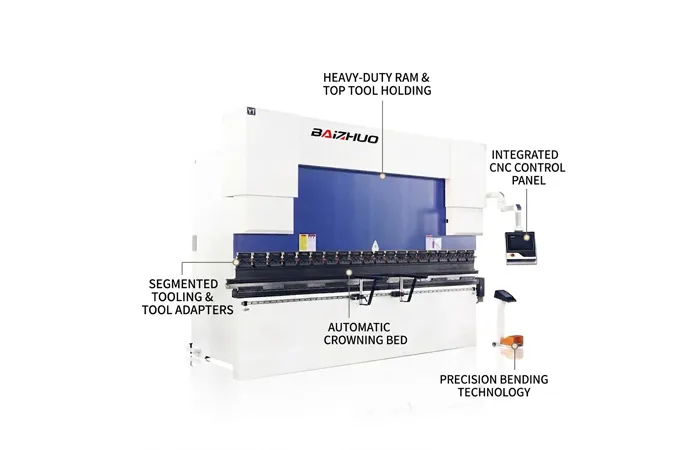

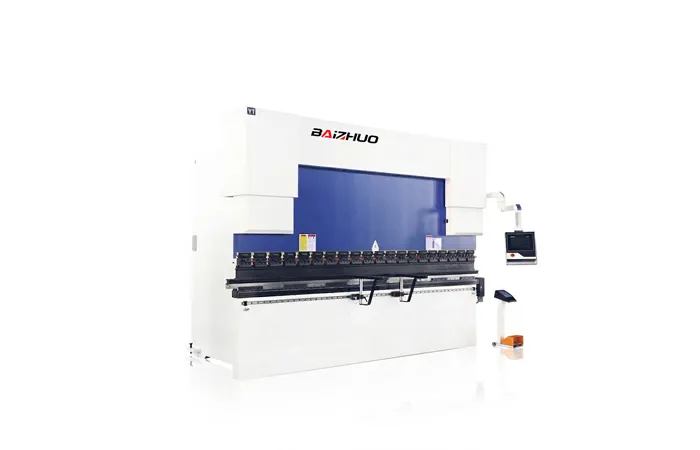

Powerful 250T CNC Press Brake for Heavy-Duty Metal Bending
The 250T 3200mm CNC press brake is a high-performance bending machine designed for precision sheet metal fabrication. With its 4+1 axis control system and advanced Delem DA53T controller, this machine delivers excellent accuracy, stability, and efficiency for both complex and large-scale bending applications.
Built for industrial use, this hydraulic CNC press brake is ideal for processing thick metal sheets and long workpieces up to 3200mm, making it a reliable solution for modern manufacturing environments.
The Delem DA53T control system provides a user-friendly interface combined with powerful CNC capabilities.
• 10.1-inch TFT touch screen with intuitive operation
• Graphical programming for easy bending sequence setup
• Real-time simulation to avoid errors and collisions
• High-speed processing for improved productivity
This smart system significantly reduces setup time and improves bending accuracy.
The machine features a 4+1 axis CNC system, ensuring synchronized and consistent bending performance:
• Y1 & Y2 axes – independent control for ram synchronization
• X axis – precise backgauge positioning
• R axis – vertical adjustment for complex bends
• V axis (crowning system) – automatic compensation for perfect bending angles
This configuration ensures high repeatability and uniform results, even on long workpieces.
• 250 Ton bending force for heavy-duty applications
• 3200 mm bending length for large sheet processing
• High rigidity machine frame for stability
• Advanced hydraulic system for smooth operation
• Energy-efficient and low noise performance
• Easy operation for both beginners and professionals
Delem DA-53T is one of the most popular CNC systems in the press brake industry, featuring:
• 10.1” high-resolution color TFT display
• Touchscreen operation for easy programming
• Automatic bending sequence calculation
• Angle correction and compensation
• Multi-step programming capability
• USB interface for data backup
The machine is equipped with a robust front support arm system, designed for enhanced productivity and operator convenience:
• Adjustable height and position
• Linear guide movement for smooth sliding
• High load-bearing capacity
• Anti-slip surface design (as shown in image)
• Ideal for large sheet metal support
Main Servo Motor
1.High-precision control system ensures excellent positioning accuracy.
2.High efficiency, low noise operation, and reduced energy consumption。
3. Wide speed adjustment range to meet various processing requirements.
4. Stable operation and high reliability, reducing equipment failures and maintenance costs.
CNC Punching Machine & Molds
1. Standard CNC V-type dies with various slot sizes and shapes for easy replacement, suitable for bending conventional sheet metal with high cost-effectiveness.
2. CNC V-type die workbench for convenient installation of sectional dies.
Scale from Italy GIVI
The slider position signal is fed back to the controller via the grating ruler, and the CNC controller adjusts the fuel supply of the oil tank.
By changing the opening degree of the synchronous valve, the sliders (Y1, Y2) are controlled to run at the same frequency to maintain the parallel state of the workbench.
High-Efficiency Crowning System for CNC Press Brake
Eliminate bending deflection with our motorized mechanical crowning system. Engineered for precision, it ensures consistent angles across the full bed length, enhancing accuracy and reducing waste in high-tonnage sheet metal fabrication.
High-Performance Electrical Control Cabinet for CNC Machinery
Our integrated control cabinets feature world-class components like Inovance drives and Schneider electrics. Designed for stability and safety, they ensure precision synchronization and reliable operation for industrial press brakes and high-speed CNC systems.
Backgauge
Close-up of BAiZHUO X+R axis backgauge with precision ball screw and helical gear system.
Quick Clamping System
High-Efficiency Quick Clamping System for CNC Press Brakes. Featuring a heavy-duty design for rapid mold changes, ensuring precise alignment, enhanced safety, and reduced downtime in sheet metal fabrication and industrial manufacturing.
