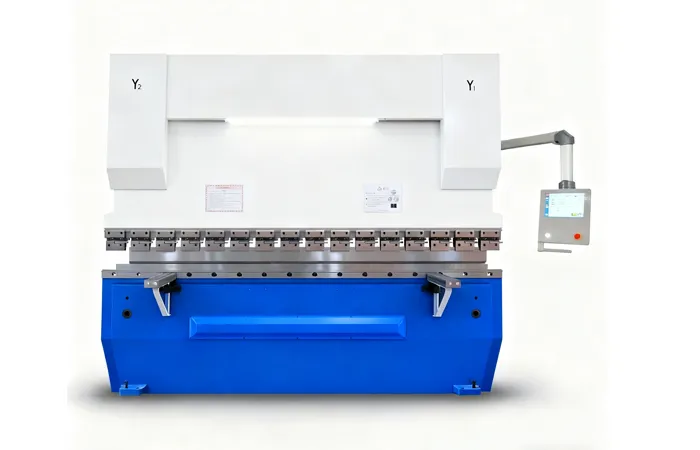

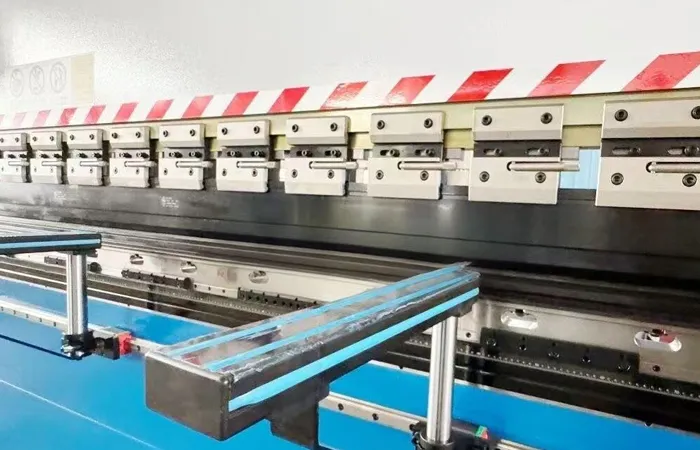

WE67K-130T-4100mm CNC Hydraulic Press Brake

Name: WE67K-130T-4100mm CNC Hydraulic Press Brake
Brand: Nantong Baizhuo CNC Machine Tool Co., Ltd.
Availability: InStock

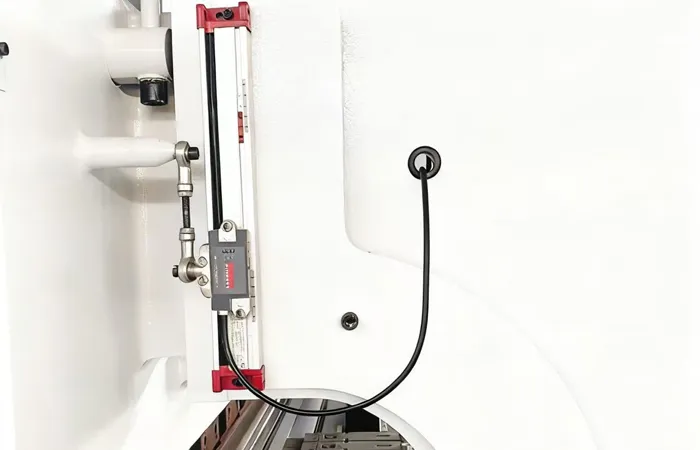

The WE67K CNC hydraulic bending machine employs a robust welded structure made of tempered steel plates to ensure machine precision and eliminate deformation. Equipped with the Delem DA-53T CNC system, it provides precise control for bending operations. The machine uses a high-precision linear scale with a feedback accuracy of up to 0.001 mm to ensure excellent bending accuracy and slide positioning. Its maintenance-free mechanical deflection compensation system achieves precise compensation to improve workpiece quality. CE certified and compliant with EU safety standards, it ensures market access and reliability.

 Get Quote

Specifications of WE67K-130T-4100 CNC Hydraulic Bending Machine

Specifications and Models	Nominal pressure（kN）	Workbench length（mm）	Distance between columns（mm）	Throat depth（mm）	Slider travel（mm）	Main motor power（kW）
WC67Y-40/2500	400	2500	2000	200	100	4
WC67Y-63/2500	630	2500	2000	250	110	5.5
WC67Y-63/3200	630	3200	2500	250	110	5.5
WC67Y-80/2500	800	2500	2500	250	110	5.5
WC67Y-80/3200	800	3200	2500	250	110	5.5
WC67Y-80/4000	800	4000	3000	250	110	5.5
WC67Y-100/2500	1000	2500	2000	250	110	7.5
WC67Y-100/3200	1000	3200	2500	320	110	7.5
WC67Y-100/4000	1000	4000	3000	320	110	7.5
WC67Y-100/5000	1000	5000	4000	320	110	7.5
WC67Y-125/2500	1250	2500	2000	320	110	7.5
WC67Y-125/3200	1250	3200	2500	320	110	7.5
WC67Y-125/4000	1250	4000	3000	320	110	7.5
WC67Y-125/5000	1250	5000	4000	320	110	7.5
WC67Y-160/3200	1600	3200	2500	320	190	11
WC67Y-160/4000	1600	4000	3000	320	190	11
WC67Y-160/5000	1600	5000	4000	320	190	11
WC67Y-160/6000	1600	6000	4800	320	190	11
WC67Y-200/3200	2000	3200	2500	320	190	11
WC67Y-200/4000	2000	4000	3000	320	190	11
WC67Y-200/5000	2000	5000	4000	320	190	15
WC67Y-200/6000	2000	6000	4800	320	190	15
WC67Y-250/3200	2500	3200	2500	320	240	15
WC67Y-250/4000	2500	4000	3000	400	240	15
WC67Y-250/5000	2500	5000	4000	400	240	15
WC67Y-300/4000	3000	4000	3200	400	240	15
WC67Y-300/5000	3000	5000	4000	400	240	22
WC67Y-300/6000	3000	6000	4800	400	240	22
WC67Y-400/4000	4000	4000	4000	350	240	22
WC67Y-400/5000	4000	5000	4000	400	240	22
WC67Y-400/6000	4000	6000	4800	400	240	30
WC67Y-500/6000	5000	6000	4800	400	300	37
WC67Y-500/12000	5000	12000	Multi-column	400	300	37
WC67Y-600/7000	6000	7000	5600	400	300	45
WC67Y-700/7000	7000	7000	5600	400	300	45
WC67Y-800/6000	8000	6000	5600	500	400	55
WC67Y-1000/6000	10000	6000	6000	600	500	75

Features of WE67K-130T-4100mm CNC Hydraulic Bending Machine

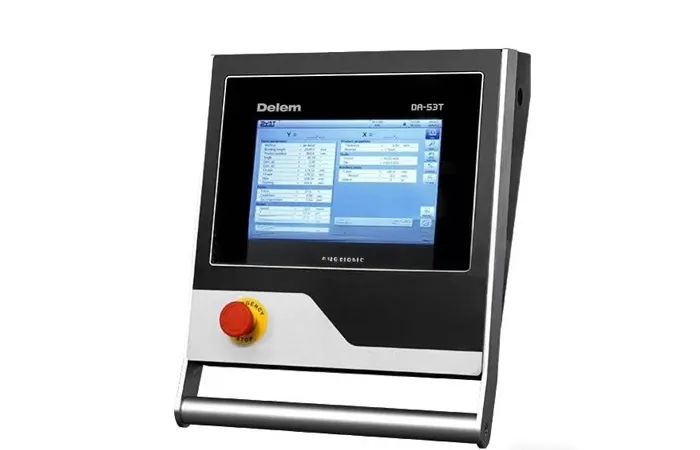

Delem DA-53T Control System

10.1-inch high-resolution true-color TFT display; Up to 4 axis controls (Y1, Y2 + 2 auxiliary axes); Deflection compensation control; Mold/material/product library available; Supports servo or frequency converter control; Advanced Y-axis control algorithm; Interoperability between two nodes (optional); USB peripheral port; Profile-53TL offline programming software.
