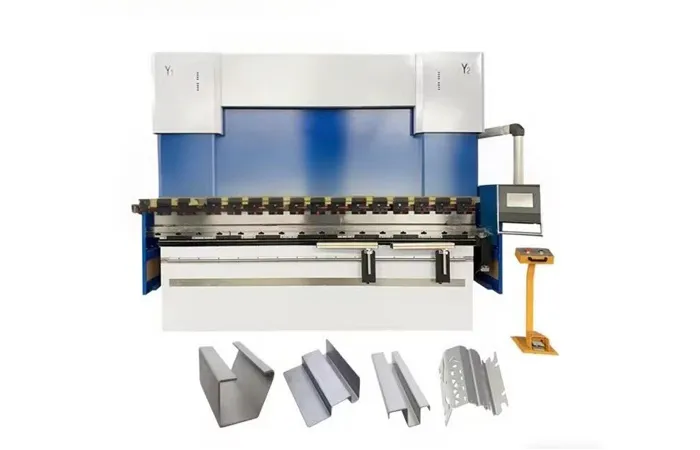

WE67k-100t-3200mm CNC Press Brake

Name: WE67k-100t-3200mm CNC Press Brake
Brand: Nantong Baizhuo CNC Machine Tool Co., Ltd.
Availability: InStock

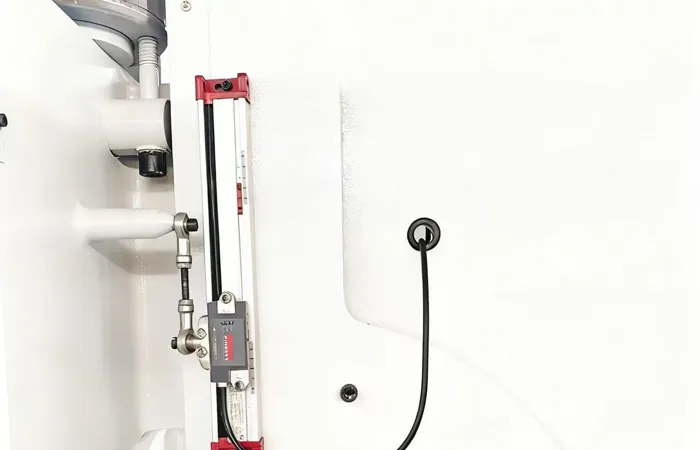

The WE67K CNC hydraulic bending machine employs a robust welded structure made of tempered steel plates to ensure machine precision and eliminate deformation. Equipped with the Delem DA-53T CNC system, it provides precise control for bending operations. The machine uses a high-precision linear scale with a feedback accuracy of up to 0.001 mm to ensure excellent bending accuracy and slider positioning. Its maintenance-free mechanical deflection compensation system achieves precise compensation to improve workpiece quality. CE certified and compliant with EU safety standards, it ensures market access and reliability.

 Get Quote

Specifications of WE67k-100t-3200mm CNC Press Brake

Specifications and Models	Nominal pressure（kN）	Workbench length（mm）	Distance between columns（mm）	Throat depth（mm）	Slider travel（mm）	Main motor power（kW）
WC67Y-40/2500	400	2500	2000	200	100	4
WC67Y-63/2500	630	2500	2000	250	110	5.5
WC67Y-63/3200	630	3200	2500	250	110	5.5
WC67Y-80/2500	800	2500	2500	250	110	5.5
WC67Y-80/3200	800	3200	2500	250	110	5.5
WC67Y-80/4000	800	4000	3000	250	110	5.5
WC67Y-100/2500	1000	2500	2000	250	110	7.5
WC67Y-100/3200	1000	3200	2500	320	110	7.5
WC67Y-100/4000	1000	4000	3000	320	110	7.5
WC67Y-100/5000	1000	5000	4000	320	110	7.5
WC67Y-125/2500	1250	2500	2000	320	110	7.5
WC67Y-125/3200	1250	3200	2500	320	110	7.5
WC67Y-125/4000	1250	4000	3000	320	110	7.5
WC67Y-125/5000	1250	5000	4000	320	110	7.5
WC67Y-160/3200	1600	3200	2500	320	190	11
WC67Y-160/4000	1600	4000	3000	320	190	11
WC67Y-160/5000	1600	5000	4000	320	190	11
WC67Y-160/6000	1600	6000	4800	320	190	11
WC67Y-200/3200	2000	3200	2500	320	190	11
WC67Y-200/4000	2000	4000	3000	320	190	11
WC67Y-200/5000	2000	5000	4000	320	190	15
WC67Y-200/6000	2000	6000	4800	320	190	15
WC67Y-250/3200	2500	3200	2500	320	240	15
WC67Y-250/4000	2500	4000	3000	400	240	15
WC67Y-250/5000	2500	5000	4000	400	240	15
WC67Y-300/4000	3000	4000	3200	400	240	15
WC67Y-300/5000	3000	5000	4000	400	240	22
WC67Y-300/6000	3000	6000	4800	400	240	22
WC67Y-400/4000	4000	4000	4000	350	240	22
WC67Y-400/5000	4000	5000	4000	400	240	22
WC67Y-400/6000	4000	6000	4800	400	240	30
WC67Y-500/6000	5000	6000	4800	400	300	37
WC67Y-500/12000	5000	12000	Multi-column	400	300	37
WC67Y-600/7000	6000	7000	5600	400	300	45
WC67Y-700/7000	7000	7000	5600	400	300	45
WC67Y-800/6000	8000	6000	5600	500	400	55
WC67Y-1000/6000	10000	6000	6000	600	500	75

Important attributes
Machinable materials	Copper, stainless steel, alloy, carbon steel, aluminum	Machine type	Torsion shaft bending machine
Workbench length（mm）	3200	Warranty period	1 year
Automation level	Fully automatic	Core components	Bearings, pumps, gears, PLCs, pressure vessels, engines, gearboxes
Key selling points	Competitive pricing	Video factory inspection	Available
Mechanical test report	Available	Motor power (kilowatts)	7.5 kw
Country of origin	Jiangsu, China	Weight（KG）	6500
Slider travel（mm）	200 mm	Throat depth（mm）	410 mm
Workbench width（mm）	200 mm	Brand	baizhuo
Product Name	CNC bending machine	CNC or not	CNC
Keywords	Bending machine	Provide after-sales service	1 year
Model	WE67K - 100T3200	Power supply	7.5W
Bending length	Maximum 3200mm	Certification	CE/ISO9001
Control system	DA53T

Features of WE67k-100t-3200mm CNC Press Brake

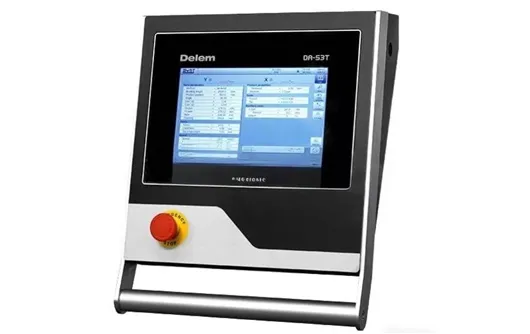

Delem DA-53T Control System

10.1-inch high-resolution true-color TFT display; Up to 4 axis controls (Y1, Y2 + 2 auxiliary axes); Deflection compensation control; Mold/material/product library available; Supports servo or frequency converter control; Advanced Y-axis control algorithm; Interoperability between two nodes (optional); USB peripheral port; Profile-53TL offline programming software.
