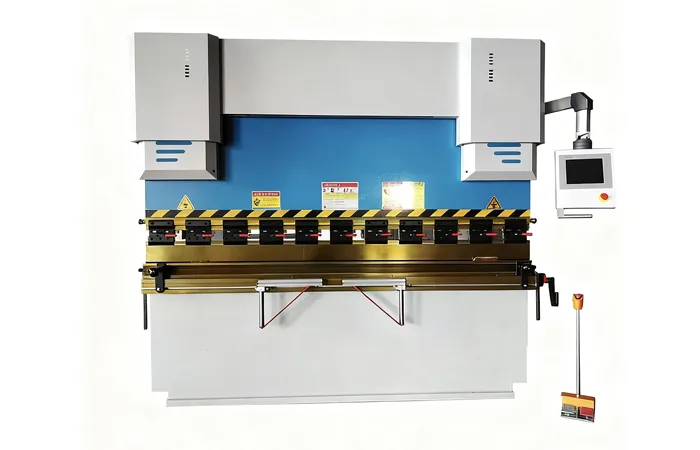

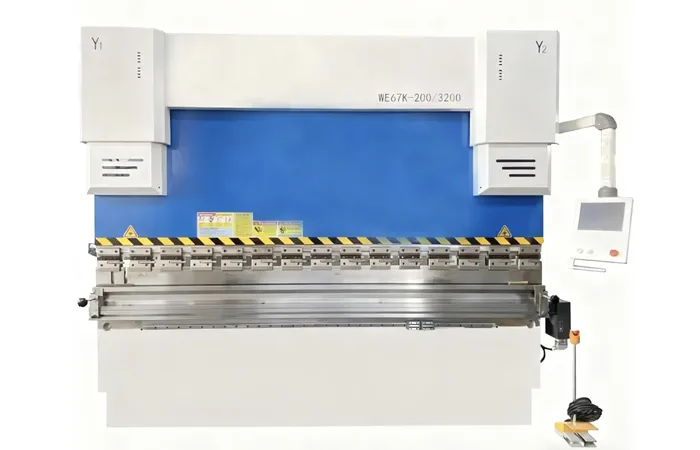

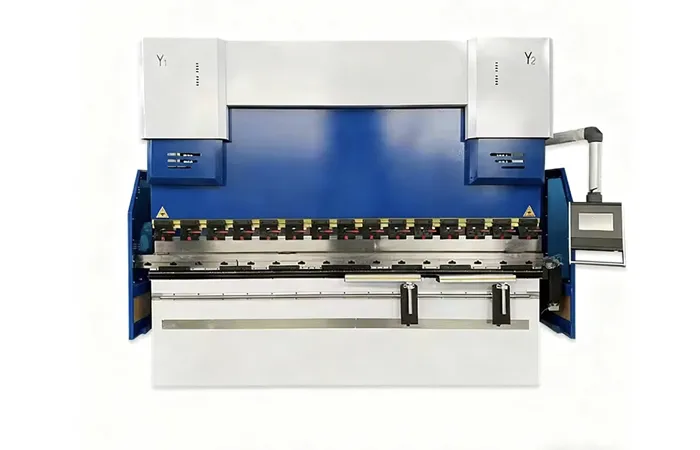

WC67K Hydraulic Press Brake

Name: WC67K Hydraulic Press Brake
Brand: Nantong Baizhuo CNC Machine Tool Co., Ltd.
Availability: InStock

The frame is a steel structure, with the left and right uprights, worktable, and pressure plate welded together into a unified structure. After welding, internal stress is eliminated through tempering, resulting in excellent rigidity and high stability. ANSYS finite element analysis software is used to ensure the reliability of critical components such as the frame and slider. The machine is hydraulically driven, with cylinders at both ends directly driving the slider. A torsion shaft synchronization mechanism ensures synchronized slider movement. A mechanical stop mechanism ensures stable and reliable operation.

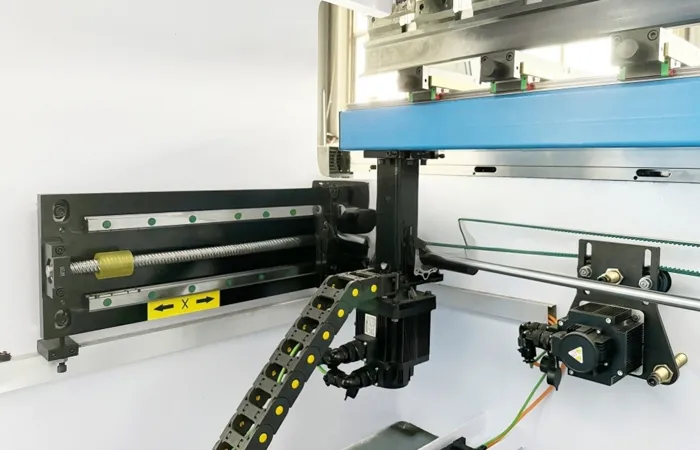

The CNC system controls the dimensions of the back gauge and sliding stroke, with high-precision ball screws ensuring stable operation and accurate positioning of the back gauge. This controller system uses frequency conversion control technology, features multi-step programming, and is simple and convenient to operate.

An inclined wedge deflection compensation mechanism ensures high bending accuracy during operation. Safety barriers are installed around the machine, the electrical cabinet has a door-opening cut-off function, emergency stop buttons are located on both the front and rear sides, and a protective foot switch ensures safe working conditions.

 Get Quote

Packaging Details of WC67K Hydraulic Press Brake

Each bending machine is first wrapped in plastic film, then placed in a wooden crate filled with foam.
We load the goods onto the port terminal using heavy-duty trucks. At the terminal, we pack the goods into containers and ship them overseas.

Delivery Details of WC67K Hydraulic Press Brake

Shipment within 30 days of payment.

Specifications of WC67K Hydraulic Press Brake

Technical parameters
Specifications and Models	Nominal pressure（kN）	Workbench length（mm）	Distance between columns（mm）	Throat depth（mm）	Slider travel（mm）	Main motor power（kW）
WC67Y-40/2500	400	2500	2000	200	100	4
WC67Y-63/2500	630	2500	2000	250	110	5.5
WC67Y-63/3200	630	3200	2500	250	110	5.5
WC67Y-80/2500	800	2500	2500	250	110	5.5
WC67Y-80/3200	800	3200	2500	250	110	5.5
WC67Y-80/4000	800	4000	3000	250	110	5.5
WC67Y-100/2500	1000	2500	2000	250	110	7.5
WC67Y-100/3200	1000	3200	2500	320	110	7.5
WC67Y-100/4000	1000	4000	3000	320	110	7.5
WC67Y-100/5000	1000	5000	4000	320	110	7.5
WC67Y-125/2500	1250	2500	2000	320	110	7.5
WC67Y-125/3200	1250	3200	2500	320	110	7.5
WC67Y-125/4000	1250	4000	3000	320	110	7.5
WC67Y-125/5000	1250	5000	4000	320	110	7.5
WC67Y-160/3200	1600	3200	2500	320	190	11
WC67Y-160/4000	1600	4000	3000	320	190	11
WC67Y-160/5000	1600	5000	4000	320	190	11
WC67Y-160/6000	1600	6000	4800	320	190	11
WC67Y-200/3200	2000	3200	2500	320	190	11
WC67Y-200/4000	2000	4000	3000	320	190	11
WC67Y-200/5000	2000	5000	4000	320	190	15
WC67Y-200/6000	2000	6000	4800	320	190	15
WC67Y-250/3200	2500	3200	2500	320	240	15
WC67Y-250/4000	2500	4000	3000	400	240	15
WC67Y-250/5000	2500	5000	4000	400	240	15
WC67Y-300/4000	3000	4000	3200	400	240	15
WC67Y-300/5000	3000	5000	4000	400	240	22
WC67Y-300/6000	3000	6000	4800	400	240	22
WC67Y-400/4000	4000	4000	4000	350	240	22
WC67Y-400/5000	4000	5000	4000	400	240	22
WC67Y-400/6000	4000	6000	4800	400	240	30
WC67Y-500/6000	5000	6000	4800	400	300	37
WC67Y-500/12000	5000	12000	Multi-column	400	300	37
WC67Y-600/7000	6000	7000	5600	400	300	45
WC67Y-700/7000	7000	7000	5600	400	300	45
WC67Y-800/6000	8000	6000	5600	500	400	55
WC67Y-1000/6000	10000	6000	6000	600	500	75

Video of WC67K Hydraulic Press Brake

TP10 Operation Video

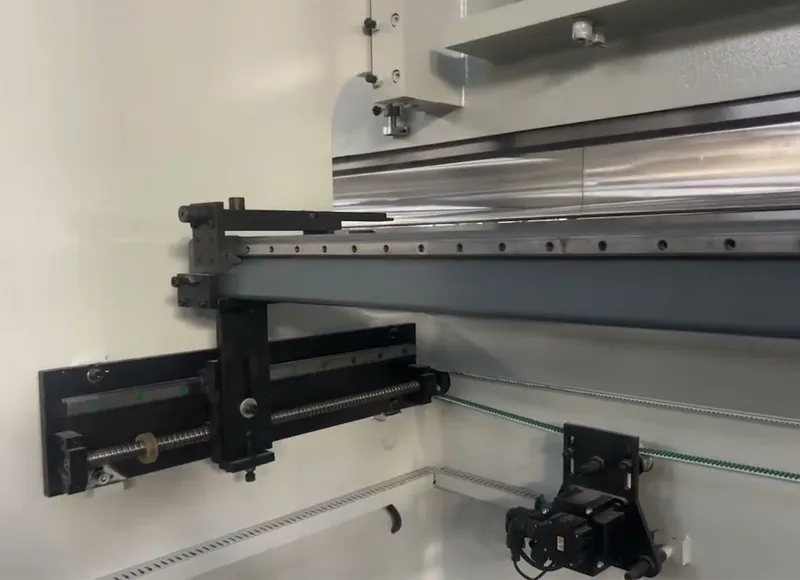

TP10 System Operetion Video

Features of WC67K Hydraulic Press Brake

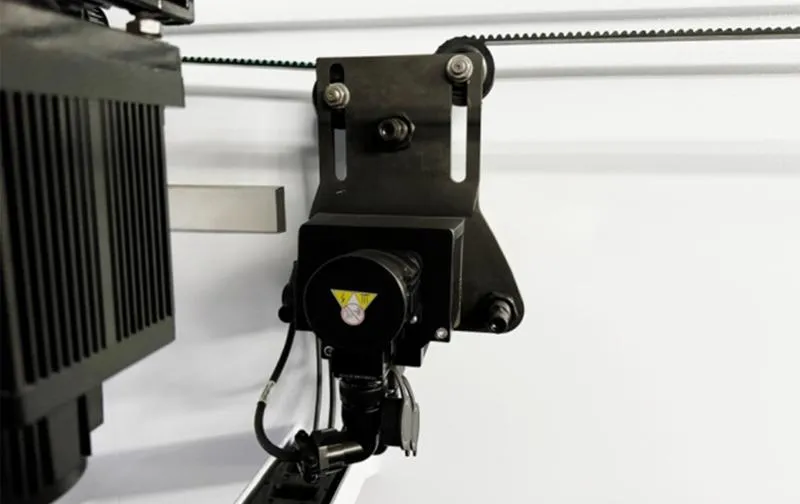

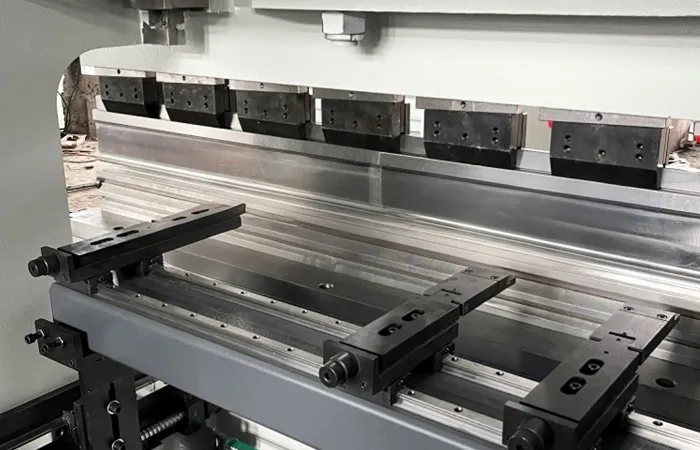

High-precision stop finger

Each bending machine is equipped with multiple high-precision stop fingers, each with a fine-tuning device; the crossbeam is equipped with double linear guides for even higher precision.
TP10S controller

A 10-inch TFT touchscreen with a 256K color display, equipped with standard Y and X1 axis servo motors for precise control. It supports angle programming and automatic calculation of board bending depth. Slider (Y-axis) position control and rear limiter (X1-axis) position control are available. Up to 220 programs are provided, each consisting of 24 steps, along with soft-limiting functionality and power-off memory. It is compatible with X2, R1, R2, Z1, and Z2 matching with support for compensation.
