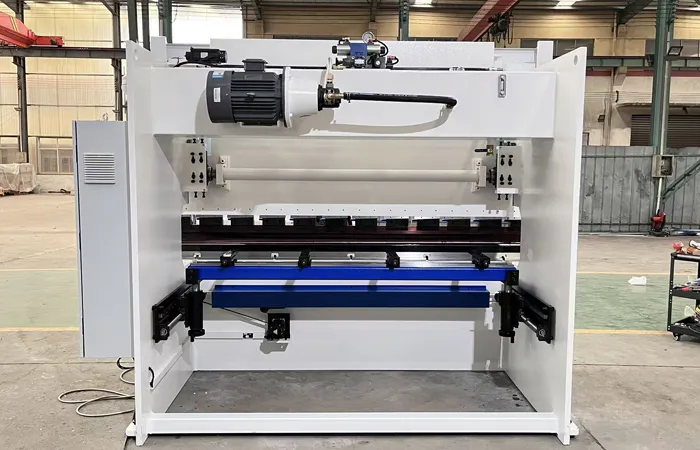

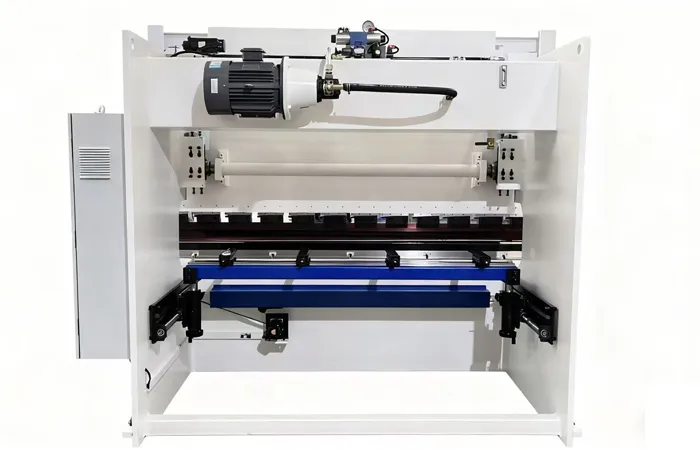

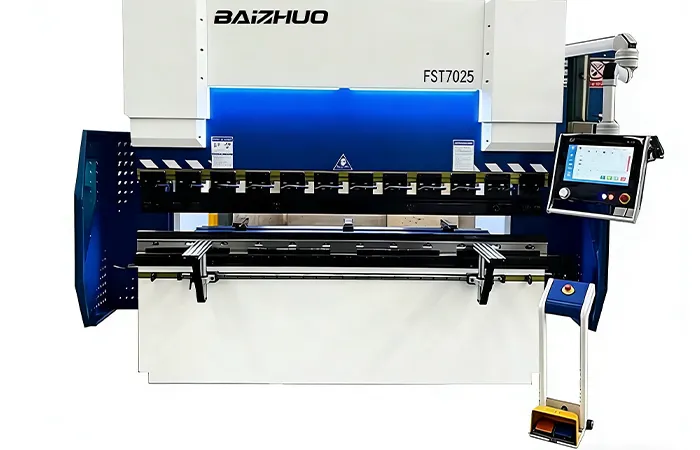

WC67K-70T-2500mm Hydraulic Press Brake

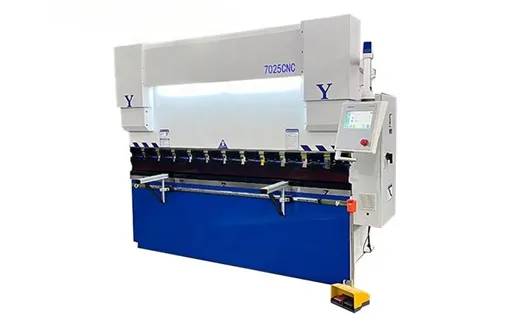

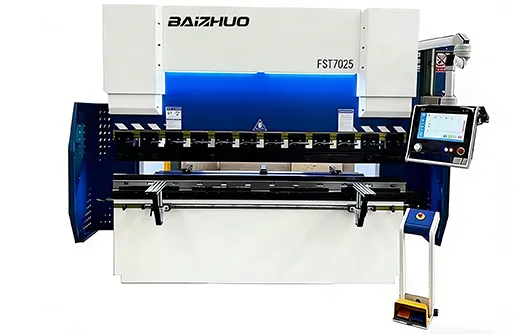

1. Utilizing UG (Finite Element Method) analysis and computer-aided optimization design, the machine boasts an aesthetically pleasing appearance.

2. The machine employs a welded steel plate structure, providing sufficient strength and rigidity. Hydraulic transmission ensures that serious overload accidents will not occur during operation due to variations in plate thickness or improper selection of the lower die V-groove. Furthermore, the machine features stable operation, ease of use, low noise, and high safety and reliability.

3. Mechanical stops are incorporated into the hydraulic cylinder to ensure the repeatability of the slider's positioning at the lower stop point, guaranteeing consistency in bending angles during mass production.

4. German technology is employed to eliminate internal pressure.

5. The overall frame undergoes sandblasting for rust removal and is coated with anti-rust paint.

1. This machine adopts hydraulic and electrical control, and the slide stroke is freely adjustable. It also features standard operations such as jogging, semi-automatic, and automatic. The standard operation allows for easy mold testing and adjustment.

2. The upward bending machine is designed with dual hydraulic cylinders working simultaneously, ensuring balanced, convenient, and safe operation.

3. The lower stop has a pressure holding delay function to ensure workpiece accuracy.

4. Under relevant national standards, the bending angle accuracy can reach ±45°. (Refer to standard JB/T22572-1999.)

5. It has a slow descent control function, allowing the operator better control of the workpiece.

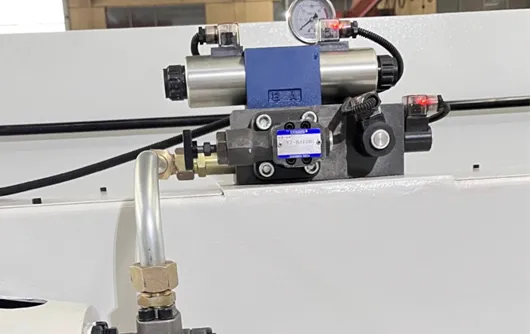

1. The hydraulic system enables rapid sliding, rapid return, upward movement, and emergency stop of the slider during downward movement.

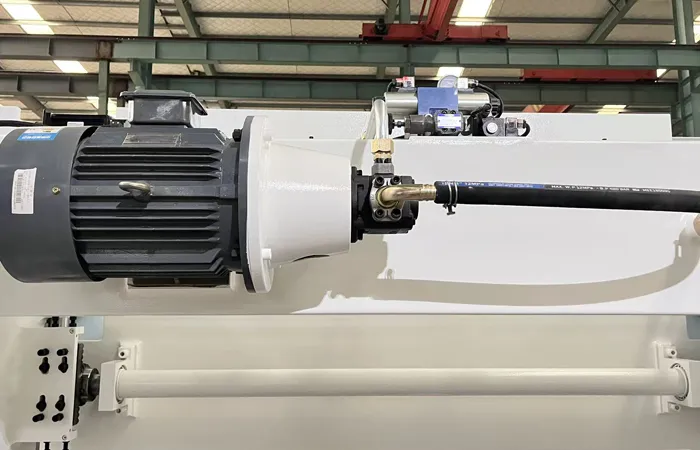

2. The oil pump is a gear pump, capable of withstanding high pressure and operating with low noise.

3. The sealing rings are selected from NOK Corporation of Japan, ensuring excellent sealing performance, reliable operation, and long service life.

4. The machine tool can operate continuously under rated load; the hydraulic system is leak-free, continuously stable, and highly precise.

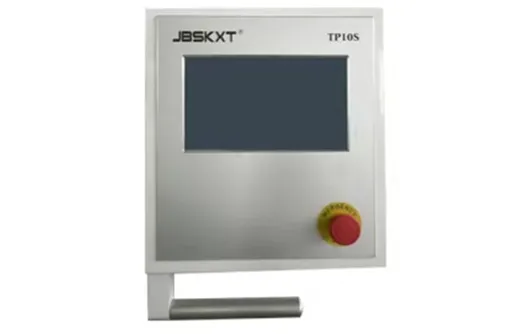

1. 10-inch large screen, high-definition and high-contrast touchscreen system

2. User-friendly interface, clear display and large icon buttons

3. Standard X and Y axis servo motors

4. Integrated programming improves efficiency in batch multi-step bending.

5. CANopen bus control method completely eliminates interference and positioning errors.

6. Supports angle programming; the system automatically calculates the bending depth of the sheet metal.

7. Slider position control (Y-axis).

8. Control of the rear limiter position (X-axis).

9. Holding time setting

10. 220 programs, each with 24 steps

11. Soft limit function.

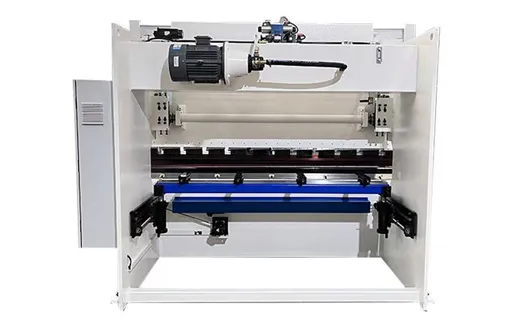

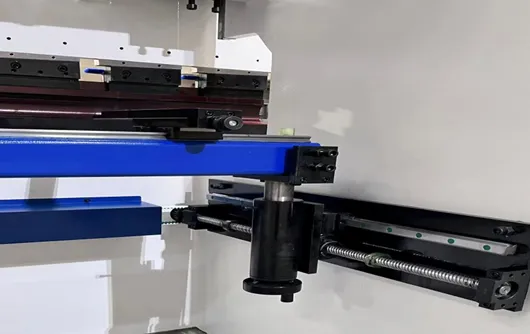

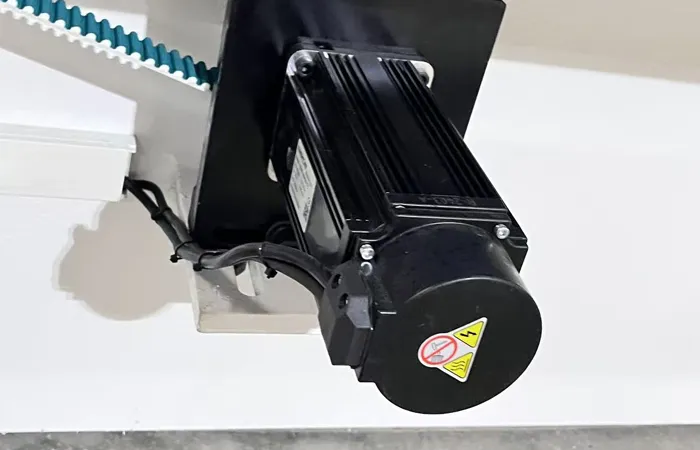

1. The rear limit switch is adjusted by a servo motor.

2. The rear stop screw is positioned using a precision ball screw and supported by a linear guide rail.

3. H-type synchronous belt and pulley drive the system, ensuring high transmission accuracy and low noise.

4. An adjustable shift finger seat is used, with fore-and-aft adjustment.
