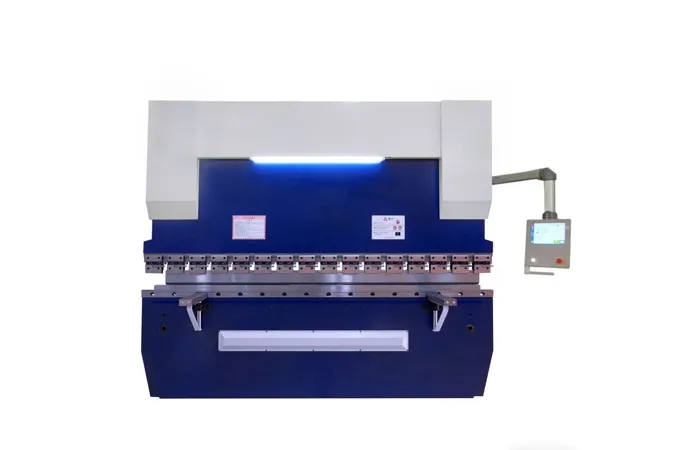

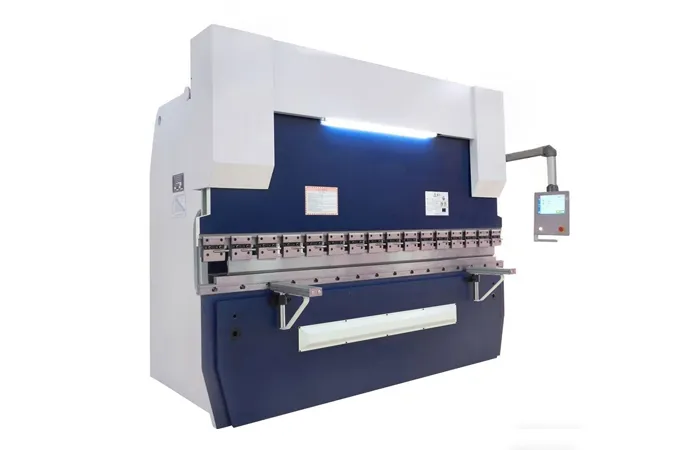

WC67K-63T-2500mm Hydraulic Press Brake

5-axis CNC

The entire machine is designed according to JB/T2257.2-92 (Chinese National Standard) "Technical Conditions for Bending Machines" and GB/T14349-93 "Precision of Bending Machines". All parts of the machine are designed using computer graphics, computer element analysis, and computer-aided manufacturing. CAD, CAE, and CAM software are used for machine structure design, ensuring sufficient structural strength and rigidity for each machine component.

 Get Quote

Features of WC67K-63T-2500mm Hydraulic Press Brake

The overall steel frame welded structure makes the bending machine robust, highly rigid, and highly resistant to impact and explosion.

It is equipped with a dedicated CNC system for bending machines manufactured by DELEM (or other CNC systems for shearing and folding machines specified by the customer).

The rear material (X), smooth part path, or travel distance (Y) are controlled automatically by computer.

The rear material uses both average lead screws and precision ball screws.

The mechanical steel plate welded structure uses VSR to eliminate internal stress, resulting in high mechanical strength and good rigidity. 7. Hydraulic dual-cylinder drive, mechanical block, and torsion shaft are synchronized, ensuring smooth and reliable operation with high precision.

Specifications of WC67K-63T-2500mm Hydraulic Press Brake

Technical parameters
Specifications and Models	Nominal pressure（kN）	Workbench length（mm）	Distance between columns（mm）	Throat depth（mm）	Slider travel（mm）	Main motor power（kW）
WC67Y-40/2500	400	2500	2000	200	100	4
WC67Y-63/2500	630	2500	2000	250	110	5.5
WC67Y-63/3200	630	3200	2500	250	110	5.5
WC67Y-80/2500	800	2500	2500	250	110	5.5
WC67Y-80/3200	800	3200	2500	250	110	5.5
WC67Y-80/4000	800	4000	3000	250	110	5.5
WC67Y-100/2500	1000	2500	2000	250	110	7.5
WC67Y-100/3200	1000	3200	2500	320	110	7.5
WC67Y-100/4000	1000	4000	3000	320	110	7.5
WC67Y-100/5000	1000	5000	4000	320	110	7.5
WC67Y-125/2500	1250	2500	2000	320	110	7.5
WC67Y-125/3200	1250	3200	2500	320	110	7.5
WC67Y-125/4000	1250	4000	3000	320	110	7.5
WC67Y-125/5000	1250	5000	4000	320	110	7.5
WC67Y-160/3200	1600	3200	2500	320	190	11
WC67Y-160/4000	1600	4000	3000	320	190	11
WC67Y-160/5000	1600	5000	4000	320	190	11
WC67Y-160/6000	1600	6000	4800	320	190	11
WC67Y-200/3200	2000	3200	2500	320	190	11
WC67Y-200/4000	2000	4000	3000	320	190	11
WC67Y-200/5000	2000	5000	4000	320	190	15
WC67Y-200/6000	2000	6000	4800	320	190	15
WC67Y-250/3200	2500	3200	2500	320	240	15
WC67Y-250/4000	2500	4000	3000	400	240	15
WC67Y-250/5000	2500	5000	4000	400	240	15
WC67Y-300/4000	3000	4000	3200	400	240	15
WC67Y-300/5000	3000	5000	4000	400	240	22
WC67Y-300/6000	3000	6000	4800	400	240	22
WC67Y-400/4000	4000	4000	4000	350	240	22
WC67Y-400/5000	4000	5000	4000	400	240	22
WC67Y-400/6000	4000	6000	4800	400	240	30
WC67Y-500/6000	5000	6000	4800	400	300	37
WC67Y-500/12000	5000	12000	Multi-column	400	300	37
WC67Y-600/7000	6000	7000	5600	400	300	45
WC67Y-700/7000	7000	7000	5600	400	300	45
WC67Y-800/6000	8000	6000	5600	500	400	55
WC67Y-1000/6000	10000	6000	6000	600	500	75
