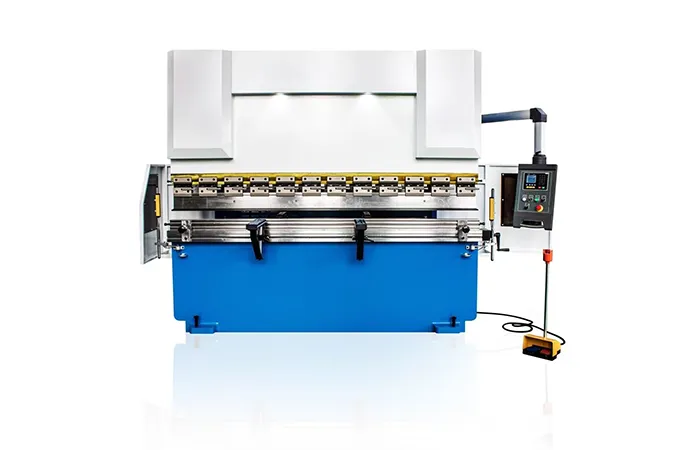

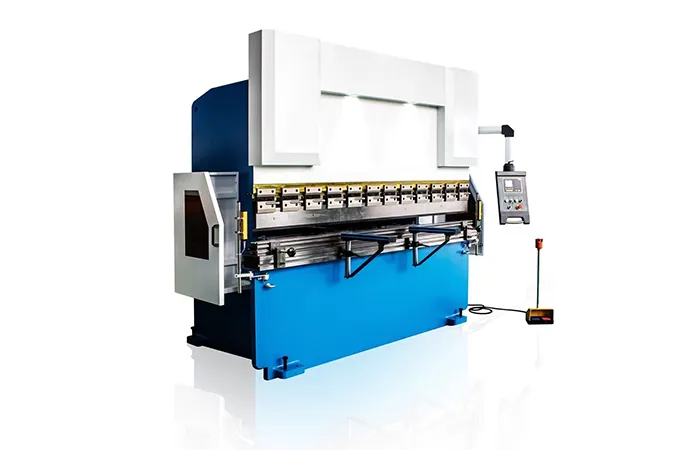

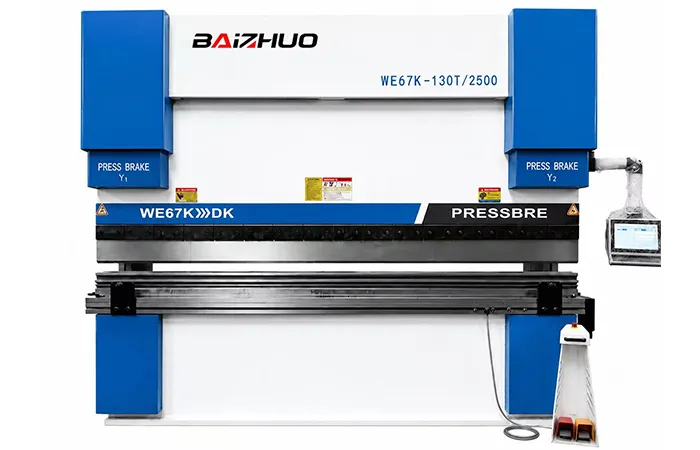

WC67K-130T-2500mm Press Brake

Name: WC67K-130T-2500mm Press Brake
Brand: Nantong Baizhuo CNC Machine Tool Co., Ltd.
Availability: InStock

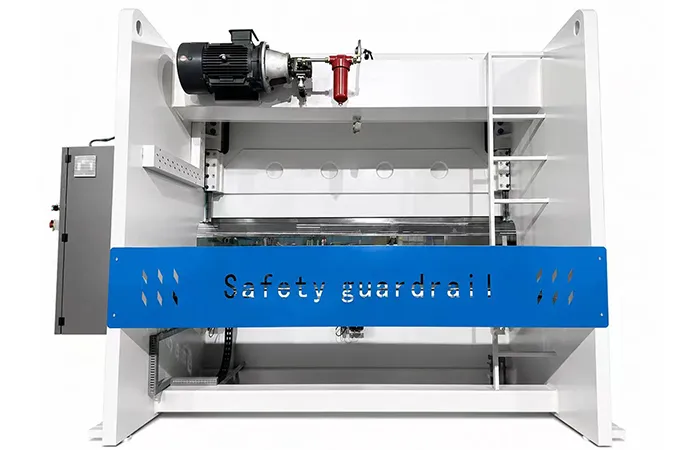

The WC67K-130T-2500mm features a robust, all-steel welded frame, tempered to eliminate internal stress for maximum rigidity and stability. Utilizing ANSYS finite element analysis, the design ensures high reliability under heavy loads. The machine is powered by a hydraulic system with dual cylinders, while a high-precision torsion shaft mechanism maintains perfect synchronization of the slider. Its CNC system manages the back gauge and stroke via high-precision ball screws and frequency conversion technology, supporting multi-step programming for efficient operation. An integrated mechanical stop and wedge deflection compensation ensure consistent bending accuracy across the 2500mm table. Complete with safety barriers and emergency stop switches, this 130T model provides a safe, stable, and highly accurate solution for diverse sheet metal tasks.

 Get Quote

Details of WC67K-130T-2500mm Press Brake



Specifications of WC67K-130T-2500mm Press Brake

Component Name	Detailed Information
Controller	Suzhou Huichuan or Imecoss
Main Motor	Beddes Siemens Main Motor
Hydraulic System	German Rexroth
Oil Pump	American Sunnycord
Electrical Components	French Schneider
Servo Motor and Drive	Heideck
Ball Screw Linear Guide	Taiwan, China
Hydraulic Cylinder	Shandong Taifen, China
Oil Cylinder	Jianhu Huaxing or Wuxi Heyuan
Hydraulic Integrated System Main Valve	REXROTH (German Rexroth)

Core Industry Attributes
Machinable Materials	Stainless steel, carbon steel, aluminum
Machine Type	Electro-hydraulic press brake
Automation Level	Automatic
Table Length (mm)	2500
Warranty Period	1.5 years
Additional Features	Bending

Other Attributes
Automation Level	Fully Automatic
Core Components	Motor, Pump
Key Selling Points	High Precision
Video Factory Inspection	Available
Country of Origin	Nantong
Brand	Baizhuo
Dimensions	290019002450
Workbench Width (mm)	50
Slider Stroke (mm)	130
Motor Power (kW)	7.5
Weight (kg)	5300
Product Name	CNC Bending Machine
Type	CNC Hydraulic
Keywords	Aluminum Carbon Stainless Steel Metal Plate Bending Machine
Control System	E21
Bending Material	Metal, Stainless Steel, Aluminum
Power Supply	7.5Km
Main Motor	Siemens Germany
Electrical Components	Schneider

Technical parameters
Specifications and Models	Nominal pressure（kN）	Workbench length（mm）	Distance between columns（mm）	Throat depth（mm）	Slider travel（mm）	Main motor power（kW）
WC67Y-40/2500	400	2500	2000	200	100	4
WC67Y-63/2500	630	2500	2000	250	110	5.5
WC67Y-63/3200	630	3200	2500	250	110	5.5
WC67Y-80/2500	800	2500	2500	250	110	5.5
WC67Y-80/3200	800	3200	2500	250	110	5.5
WC67Y-80/4000	800	4000	3000	250	110	5.5
WC67Y-100/2500	1000	2500	2000	250	110	7.5
WC67Y-100/3200	1000	3200	2500	320	110	7.5
WC67Y-100/4000	1000	4000	3000	320	110	7.5
WC67Y-100/5000	1000	5000	4000	320	110	7.5
WC67Y-125/2500	1250	2500	2000	320	110	7.5
WC67Y-125/3200	1250	3200	2500	320	110	7.5
WC67Y-125/4000	1250	4000	3000	320	110	7.5
WC67Y-125/5000	1250	5000	4000	320	110	7.5
WC67Y-160/3200	1600	3200	2500	320	190	11
WC67Y-160/4000	1600	4000	3000	320	190	11
WC67Y-160/5000	1600	5000	4000	320	190	11
WC67Y-160/6000	1600	6000	4800	320	190	11
WC67Y-200/3200	2000	3200	2500	320	190	11
WC67Y-200/4000	2000	4000	3000	320	190	11
WC67Y-200/5000	2000	5000	4000	320	190	15
WC67Y-200/6000	2000	6000	4800	320	190	15
WC67Y-250/3200	2500	3200	2500	320	240	15
WC67Y-250/4000	2500	4000	3000	400	240	15
WC67Y-250/5000	2500	5000	4000	400	240	15
WC67Y-300/4000	3000	4000	3200	400	240	15
WC67Y-300/5000	3000	5000	4000	400	240	22
WC67Y-300/6000	3000	6000	4800	400	240	22
WC67Y-400/4000	4000	4000	4000	350	240	22
WC67Y-400/5000	4000	5000	4000	400	240	22
WC67Y-400/6000	4000	6000	4800	400	240	30
WC67Y-500/6000	5000	6000	4800	400	300	37
WC67Y-500/12000	5000	12000	Multi-column	400	300	37
WC67Y-600/7000	6000	7000	5600	400	300	45
WC67Y-700/7000	7000	7000	5600	400	300	45
WC67Y-800/6000	8000	6000	5600	500	400	55
WC67Y-1000/6000	10000	6000	6000	600	500	75

Video of WC67K-130T-2500mm Press Brake

WC67K-130T-2500mm Press Brake Operation Video

Features of WC67K-130T-2500mm Press Brake

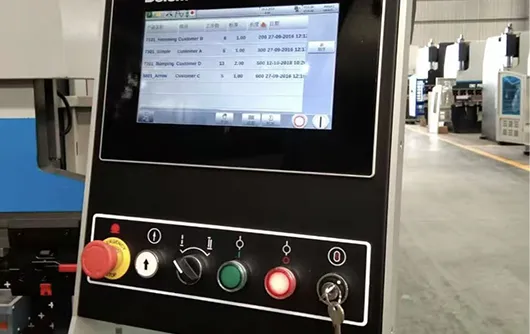

Delem DA-53T Control System

10.1-inch high-resolution true-color TFT display; Up to 4 axis controls (Y1, Y2 + 2 auxiliary axes); Deflection compensation control; Mold/material/product library available; Supports servo or frequency converter control; Advanced Y-axis control algorithm; Interoperability between two nodes (optional); USB peripheral port; Profile-53TL offline programming software.

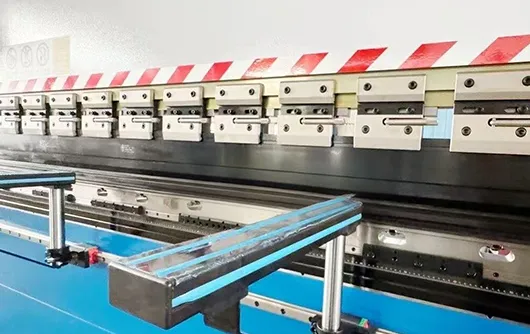

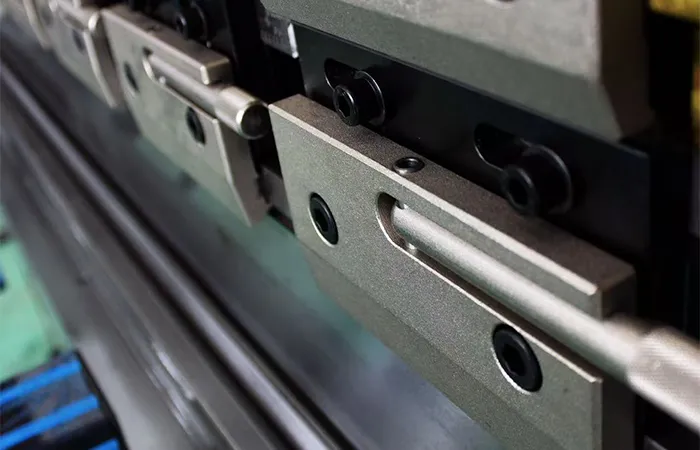

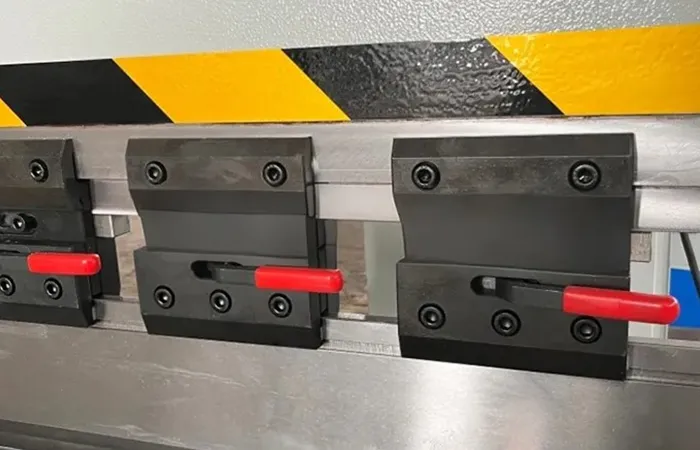

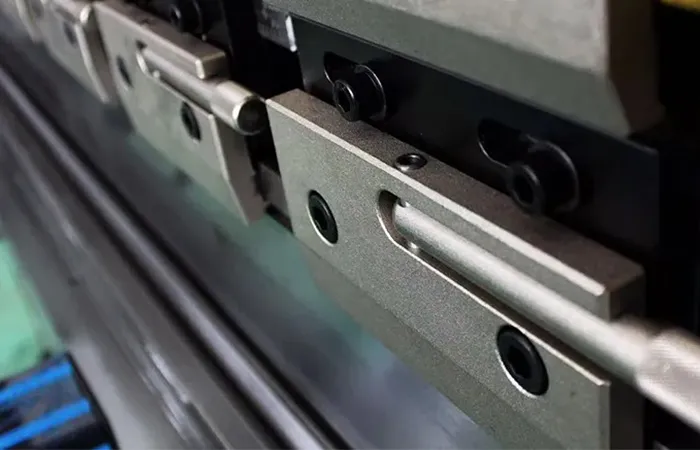

Quick-Release Clamp

The upper punch can be easily and conveniently connected and disconnected, significantly improving efficiency and simplifying the workflow.

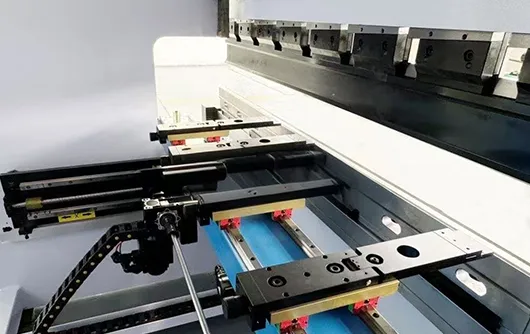

High-Precision Stop Finger

Two CNC stop fingers are used at the center position, enabling programmable control of the stopping point at a specified level with high speed.

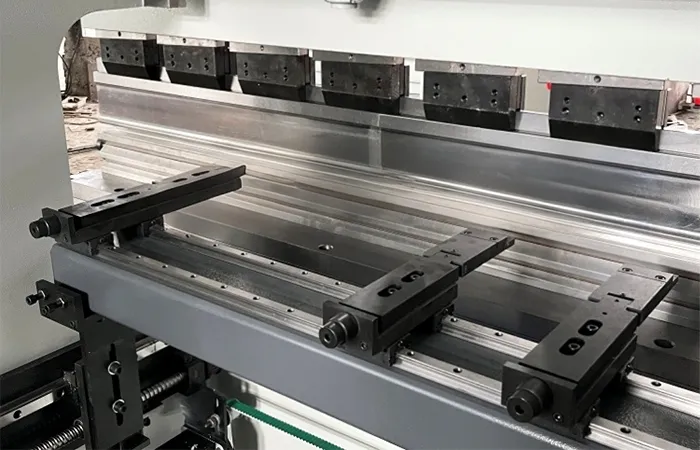

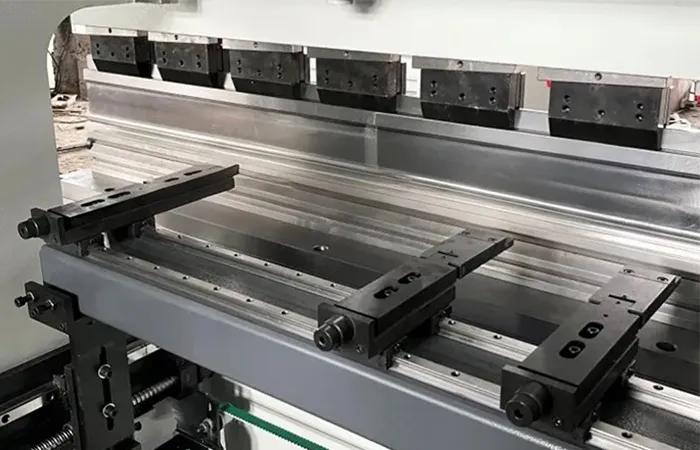

4+1 Axis CNC Back Gauge

The X-axis is driven by linear guides, ball screws, and servo motors to ensure precise positioning. The R-axis is driven by a high-power servo motor, linear guides, and ball screws, featuring fast response and accurate positioning.

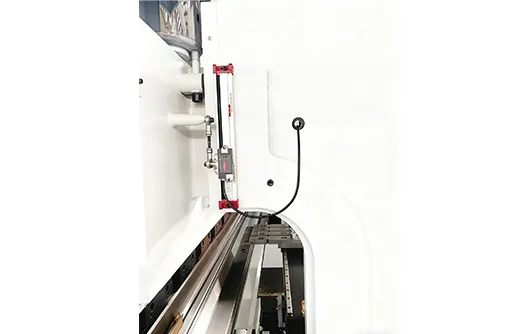

High-Precision Optical Grating Scale

High-precision linear encoders serve as displacement sensors mounted on the C-plate to detect cylinder movement. With feedback accuracy as high as 0.001 millimeters, they enable superior control over bending angles.

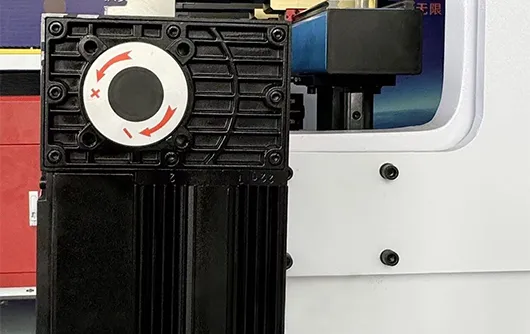

Mechanical Crowning (V-axis)

High-precision CNC mechanical deflection compensation is employed. With more compensation points, the press brake achieves linear compensation during bending operations, enhancing the bending quality of workpieces. It features maintenance-free operation and more accurate compensation.
