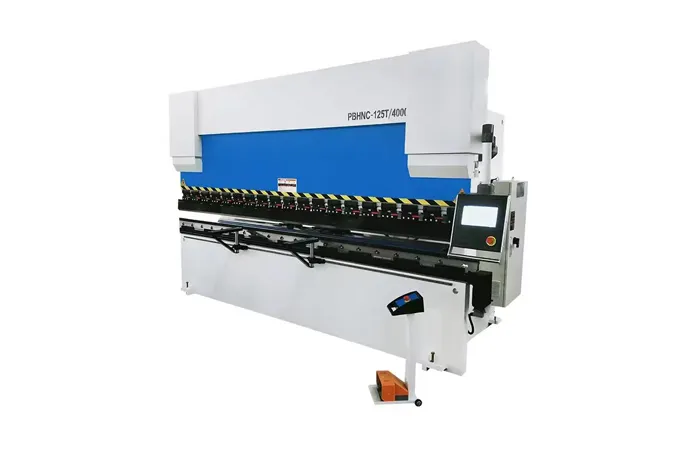

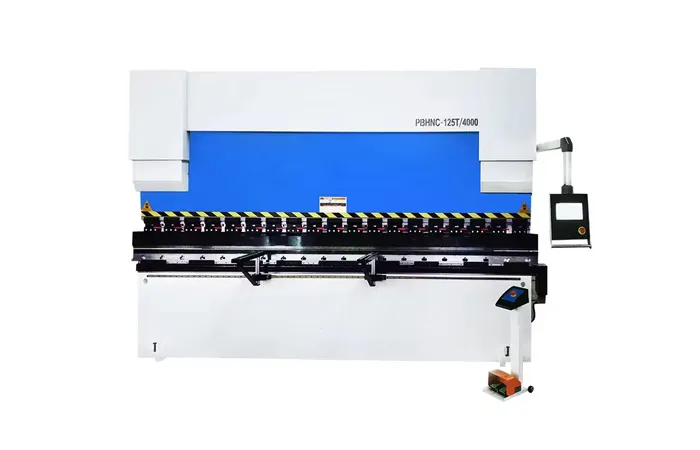

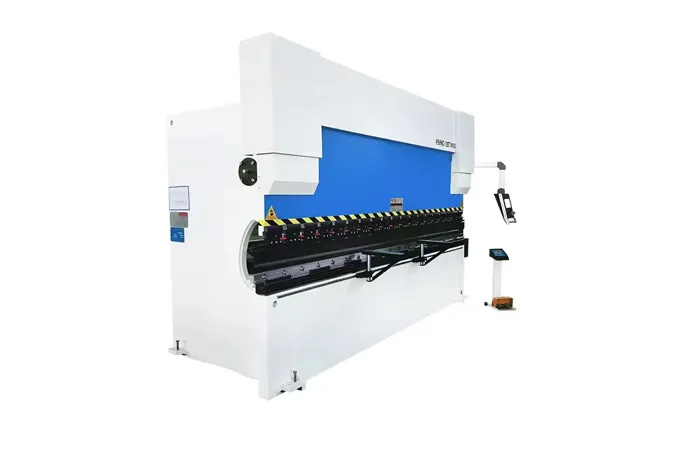

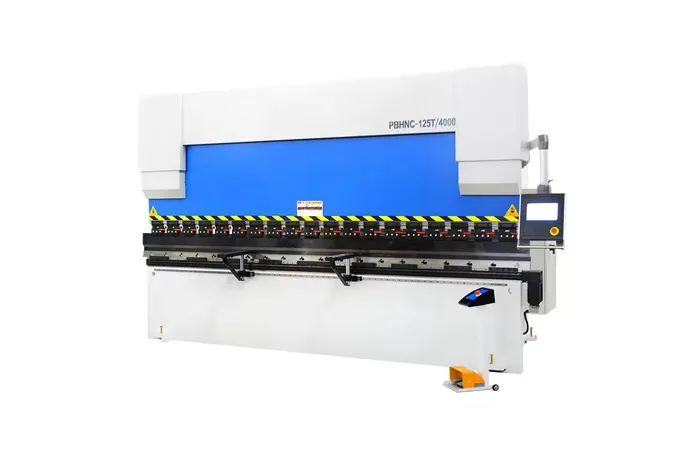

WC67K-125T-4000mm Press Brake

Name: WC67K-125T-4000mm Press Brake
Brand: Nantong Baizhuo CNC Machine Tool Co., Ltd.
Availability: InStock

The WC67K-125T-4000mm utilizes an all-steel welded structure, tempered for high rigidity and stability. Optimized via ANSYS finite element analysis, the frame supports heavy-duty operations with minimal deformation. The hydraulic drive system, featuring dual cylinders and a mechanical torsion shaft, ensures precise slider synchronization across the 4000mm worktable. The CNC system utilizes frequency conversion and high-precision ball screws to automate back gauge positioning and stroke depth. Integrated with a wedge deflection compensation mechanism, the machine guarantees uniform bending angles. For operator protection, it includes safety barriers, an emergency stop system, and a shielded foot switch, ensuring a secure and efficient production environment.

 Get Quote

Features of WC67K-125T-4000mm Press Brake

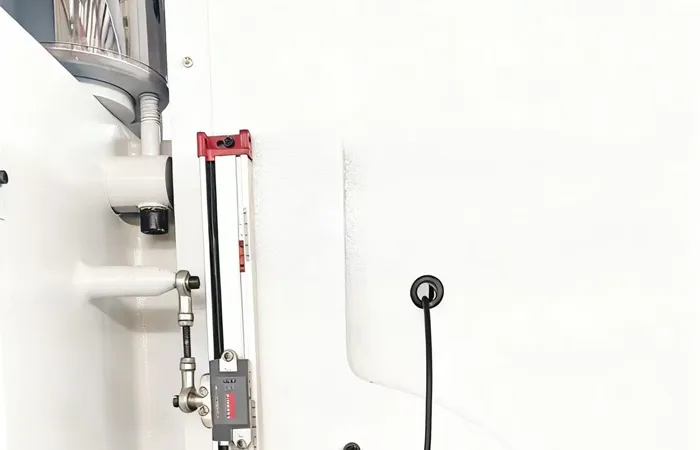

Employing electro-hydraulic synchronization technology combined with a high-precision feedback grating ruler, higher bending accuracy is achieved. Repeatability can reach ±0.01 mm, and parallelism can reach 0.02 mm, effectively ensuring the bending quality of the workpiece.

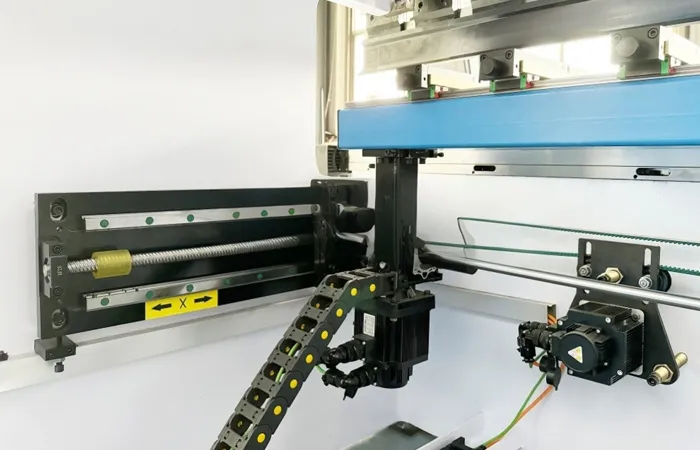

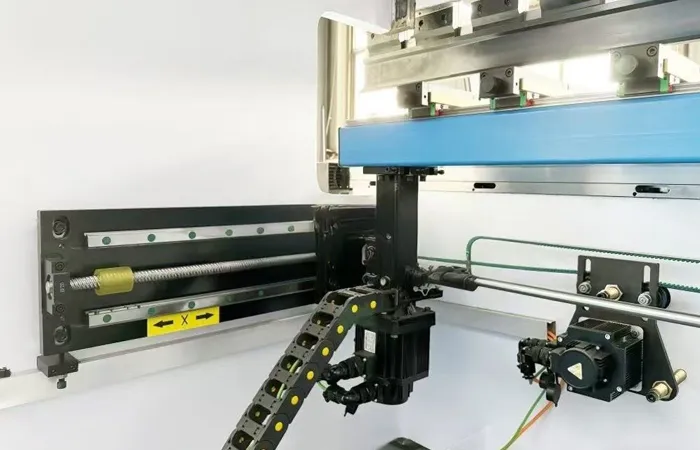

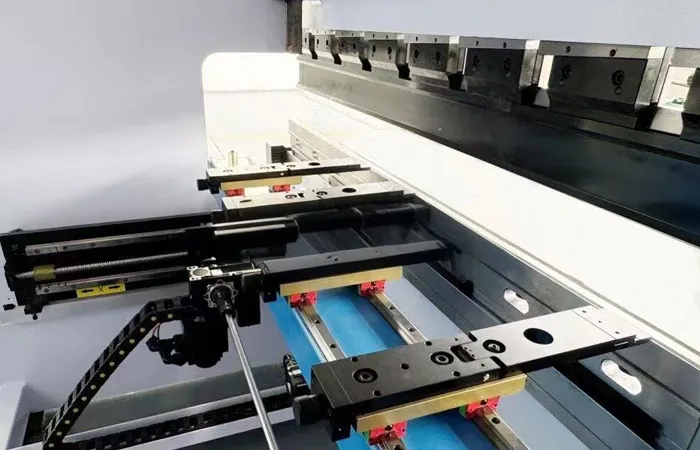

The rear guide is a welded steel structure with high rigidity. Equipped with a ball screw and linear guide, and driven by a servo motor, it achieves fast and precise positioning with high accuracy. It can meet the machining requirements of workpieces of different dimensions.

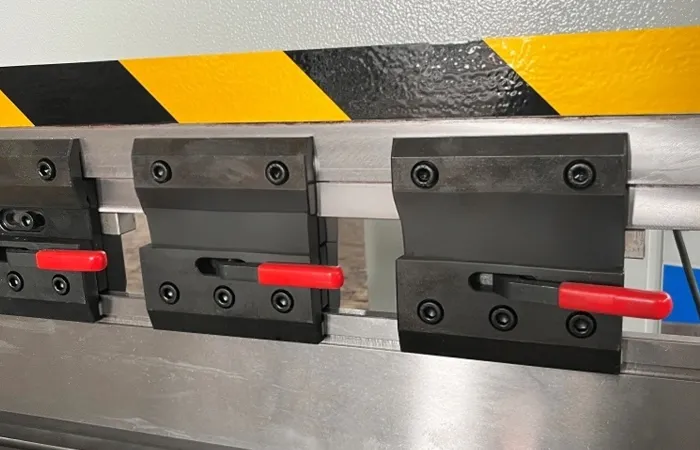

The upper and lower molds are segmented in a standard manner, with specifications such as 10 cm, 15 cm, 20 cm, 30 cm, 50 cm, 100 cm, and 300 cm available. Users can also customize the length to accommodate the production of various workpieces, improving processing efficiency and flexibility.

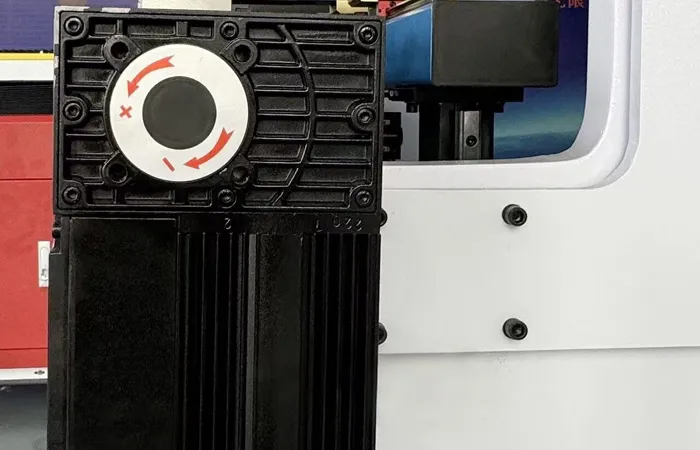

It is an electromechanical deflection compensation device driven by a motor. The compensation amount can be precisely adjusted according to the input parameters of the plate's thickness and length, effectively solving deformation problems during the bending process and ensuring the bending accuracy of the workpiece.

Specifications of WC67K-125T-4000mm Press Brake

Specifications and Models	Nominal pressure（kN）	Workbench length（mm）	Distance between columns（mm）	Throat depth（mm）	Slider travel（mm）	Main motor power（kW）
WC67Y-40/2500	400	2500	2000	200	100	4
WC67Y-63/2500	630	2500	2000	250	110	5.5
WC67Y-63/3200	630	3200	2500	250	110	5.5
WC67Y-80/2500	800	2500	2500	250	110	5.5
WC67Y-80/3200	800	3200	2500	250	110	5.5
WC67Y-80/4000	800	4000	3000	250	110	5.5
WC67Y-100/2500	1000	2500	2000	250	110	7.5
WC67Y-100/3200	1000	3200	2500	320	110	7.5
WC67Y-100/4000	1000	4000	3000	320	110	7.5
WC67Y-100/5000	1000	5000	4000	320	110	7.5
WC67Y-125/2500	1250	2500	2000	320	110	7.5
WC67Y-125/3200	1250	3200	2500	320	110	7.5
WC67Y-125/4000	1250	4000	3000	320	110	7.5
WC67Y-125/5000	1250	5000	4000	320	110	7.5
WC67Y-160/3200	1600	3200	2500	320	190	11
WC67Y-160/4000	1600	4000	3000	320	190	11
WC67Y-160/5000	1600	5000	4000	320	190	11
WC67Y-160/6000	1600	6000	4800	320	190	11
WC67Y-200/3200	2000	3200	2500	320	190	11
WC67Y-200/4000	2000	4000	3000	320	190	11
WC67Y-200/5000	2000	5000	4000	320	190	15
WC67Y-200/6000	2000	6000	4800	320	190	15
WC67Y-250/3200	2500	3200	2500	320	240	15
WC67Y-250/4000	2500	4000	3000	400	240	15
WC67Y-250/5000	2500	5000	4000	400	240	15
WC67Y-300/4000	3000	4000	3200	400	240	15
WC67Y-300/5000	3000	5000	4000	400	240	22
WC67Y-300/6000	3000	6000	4800	400	240	22
WC67Y-400/4000	4000	4000	4000	350	240	22
WC67Y-400/5000	4000	5000	4000	400	240	22
WC67Y-400/6000	4000	6000	4800	400	240	30
WC67Y-500/6000	5000	6000	4800	400	300	37
WC67Y-500/12000	5000	12000	Multi-column	400	300	37
WC67Y-600/7000	6000	7000	5600	400	300	45
WC67Y-700/7000	7000	7000	5600	400	300	45
WC67Y-800/6000	8000	6000	5600	500	400	55
WC67Y-1000/6000	10000	6000	6000	600	500	75
