Fast and continuous cutting capabilities the oscillating motion of the swing shear allows for continuous shearing, resulting in faster production speeds. The swing shear is ideally suited to jobs requiring high throughput and speed, such as the mass production of standardized components.
Versatile Cutting Capability: Swing shears are able to meet the demand for cutting different angles and shapes in metal processing, and provide the flexibility needed for cutting complex shapes or angles in sheet metal.
The frame part adopts combined welding whole structure with good rigidity, mainly composed of left and right columns (wall panels), front wall panels, working table, oil tank, and so on.

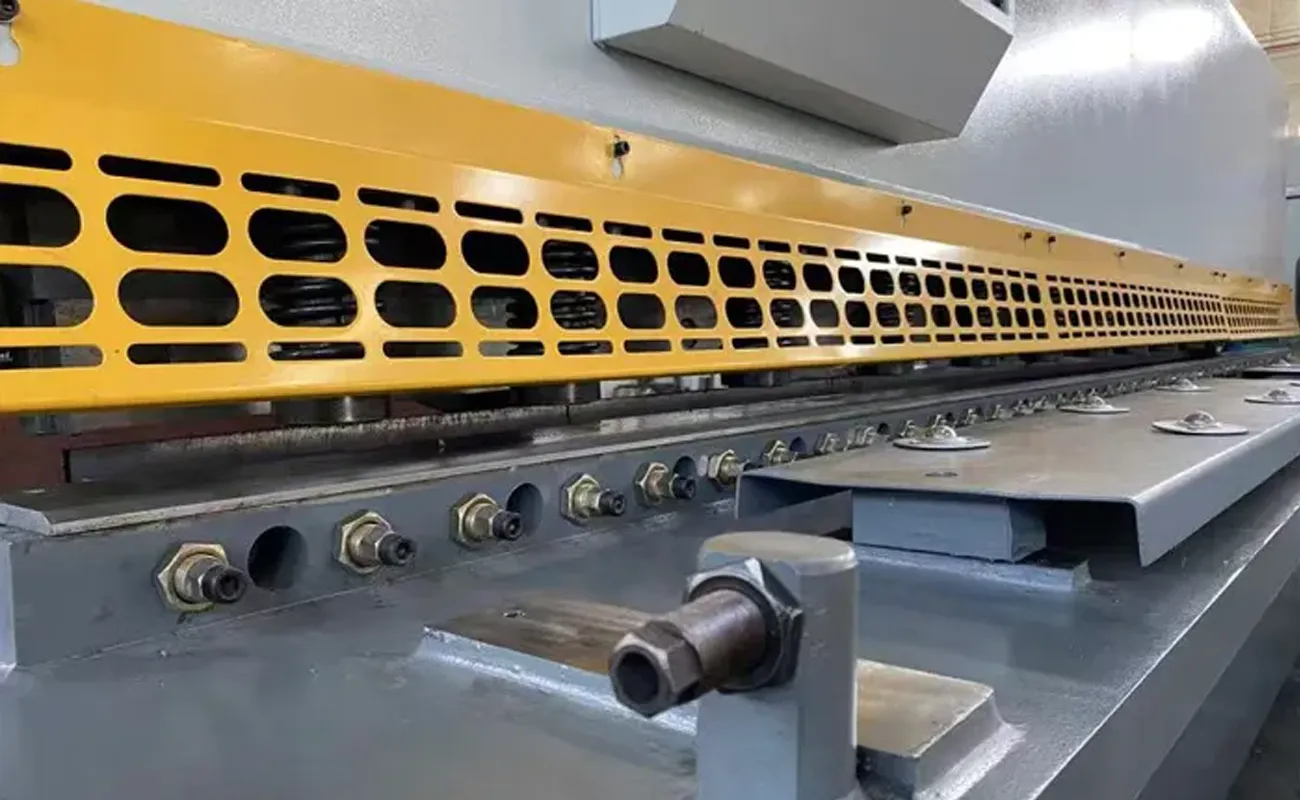

The clamping mechanism consists of a set of pressure material feet installed at the bottom of the frame beam. After the pressure oil is fed in, the presser foot plunger presses the steel plate downward, and after the shearing is finished, the presser foot rises to reset by the spring force.
Blade gap adjustment device upper and lower edge gap adjustment is achieved by turning the gap adjustment handle, driving the two pinion gears on its shaft respectively meshed sector gear, and then driving the eccentric shaft sleeve on the pivot axis to rotate.
The knife frame is a fully enclosed welded structure with high torsion resistance and good rigidity, connected with the frame through the two ends of the pivot shaft, and equipped with an internal shear cylinder and return cylinder.
