Press Brake Controller

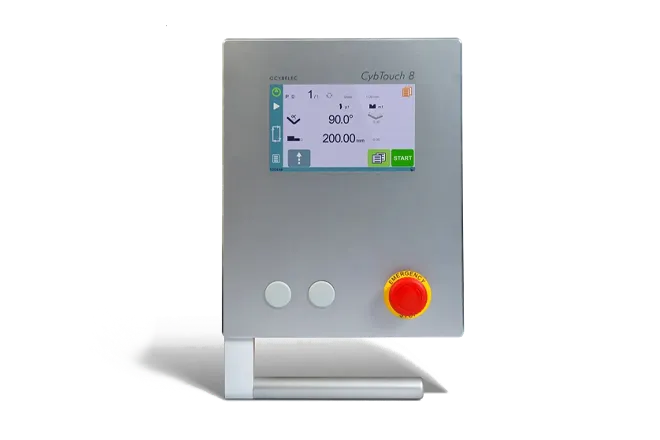

CybTouch 8 PS is a 3-axis CNC press brake controller with optional 4th axis and graphical interface. Designed for OEMs, it combines user-friendly touchscreen operation with precise machine tuning for optimal bending accuracy.

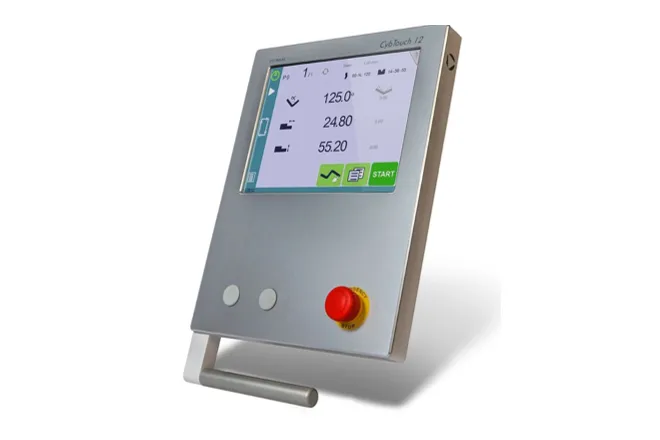

CybTouch 12 PS is intended specifically for synchronized press-breaks. As the entire CybTouch numerical control range, CybTouch 12 PS has an intuitive and fully touch

screen human machine interface, integrated in a modern, slim and functional box design. Thanks to its large keys, online help, simplified software and many other automatic functions that constantly guide the operator and enable CybTouch 12 PS to be used with ease.

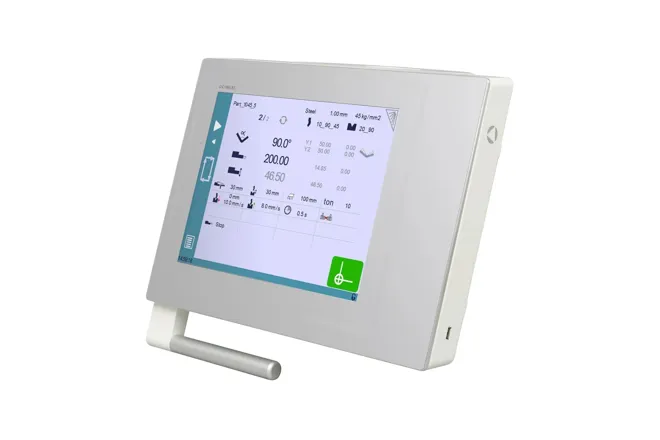

The CybTouch 15 is a 2D numerical control specifically dedicated for entry to mid-range CNC press-brakes up to 6 axes. It comes in a compact housing, similarly to the well-known CybTouch range in the field, but offering a bigger touchscreen and a new horizontal design.

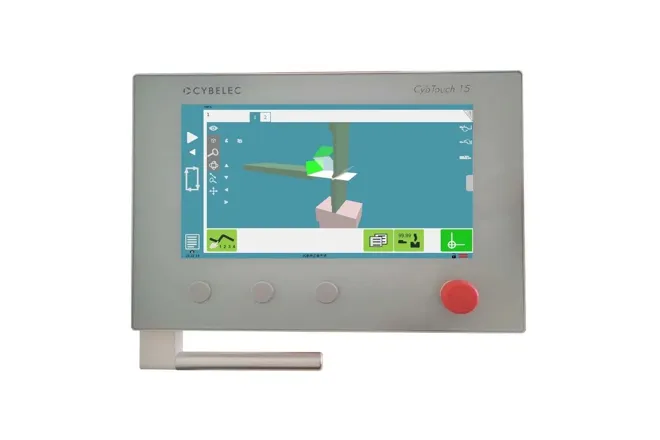

CybTouch 15PS Win is an advanced all-in-one numerical control system for press brakes. It features a semi-compact design with a modern 15-inch full glass touchscreen and the CNC board mounted directly on the back. The system supports up to 6 electric axes (analog, CANopen, or EtherCAT) and interfaces with all types of hydraulic systems, I/O, and analog axes via CybMVA modules installed in the electrical cabinet.

VisiTouch Pac is a powerful all-in-one numerical control system for press brakes. It features a semi-compact design with a modern 19-inch full glass touchscreen and the CNC board mounted directly on the back. The system supports fully digital control of up to 24+2 electric axes via two CANopen and one EtherCAT field buses, and interfaces with all types of hydraulic systems, I/O, and analog axes using CybMVA modules installed in the electrical cabinet.

VisiTouch 24 is a high-performance all-in-one numerical control system for press brakes. It features a semi-compact design with a large 24-inch modern full glass touchscreen and the CNC board mounted directly on the back. The system offers full digital control of up to 24+2 electric axes through two CANopen and one EtherCAT field buses with extensive configuration options, and interfaces seamlessly with all types of hydraulic systems, I/O, and analog axes using CybMVA modules in the electrical cabinet.

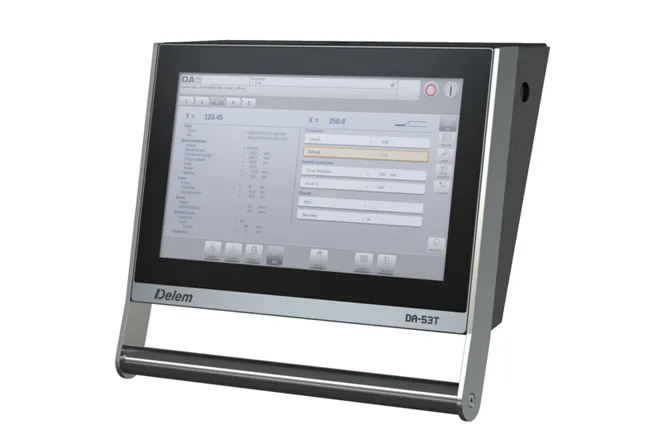

The new DA-53T touch CNC control provides a modern compact and versatile solution for a wide range of press brake applications without compromising machine functionality. The DA-50T-series offers the easiest CNC programming based on the proven Delem touch screen user interface. The new compact DA-53T with large screen adds a state-of-the-art complete touch control solution for synchronized press brakes.

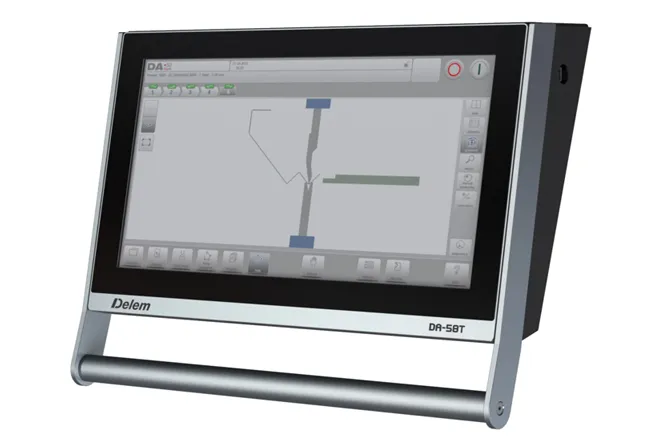

The new DA-58T touch CNC control provides a modern compact and versatile solution for powerful economic press brake applications. The DA-58T offers 2D programming including automatic bend sequence calculation and collision detection. The production mode of the DA-58T helps the operator in graphically simulating the bend process of the product, guiding him during the press brake operation.

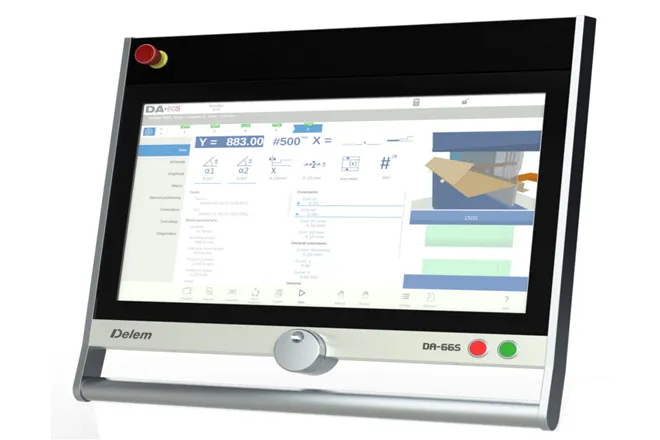

The DA-66S combines precision press brake control with an intuitive touchscreen interface to boost productivity and versatility. It streamlines the manufacturing chain by enabling seamless navigation between 2D programming and production. Key features include automatic bend sequencing, collision detection, and 3D machine set-up for real-time feasibility feedback. With optimized control algorithms and a modular design, it minimizes set-up times and adapts easily to diverse application needs, ensuring peak efficiency and ergonomic operation.
