Press Brake

The primary function is the precise deformation of sheet metal along a straight axis. By utilizing a punch and die set, the machine applies calculated tonnage to create V-shapes, U-shapes, or complex profiles. The CNC system ensures that the bending angle remains consistent across the entire length of the workpiece.

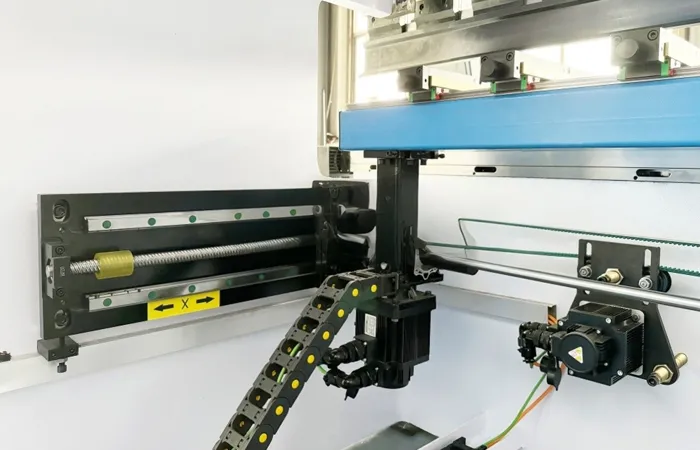

Modern press brakes utilize a motorized backgauge system to position the metal sheet accurately before the stroke. The CNC controller manages multiple axes (X, R, Z), allowing the machine to handle complex, multi-bend sequences in a single setup, significantly reducing manual measurement errors and increasing production speed.

The machine provides precise control over the hydraulic pressure and the depth of the ram stroke. By adjusting these parameters, operators can work with various material thicknesses and types, such as stainless steel or aluminum, ensuring the material reaches its plastic limit without fracturing or over-bending.

To counter the natural deflection of the machine frame under high pressure, press brakes feature a crowning function. This mechanism adjusts the worktable or the ram to ensure a uniform distribution of force, preventing the "canoe effect" and ensuring the bend angle is identical at the ends and the center.

Safety functions are integrated to protect the operator while maintaining efficiency. Features like laser guards, light curtains, and two-stage foot pedals ensure the machine stops instantly if an obstruction is detected. These systems allow for high-speed operation without compromising the physical safety of the workplace.
